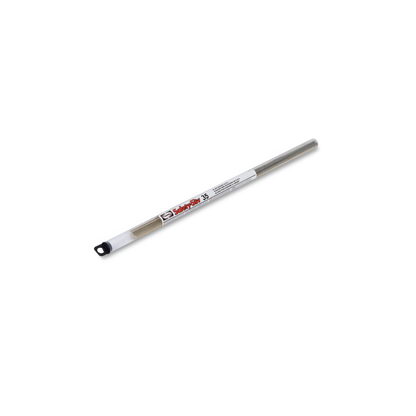

Harris Products Group, 35318L, Brazing Alloy, Cadmium-Free, Medium Temperature, Steel; Copper; Brass

Safety-Silv® 35 is a silver, cadmium-free, lower temperature brazing filler metal. The cadmium-free quality of this filler metal makes it useful for applications where cadmium fumes must not exist in the brazing environment. Safety-Silv® 35 is suitable for joining steel, copper and most brasses. It produces joints that are strong and ductile as its medium range brazing temperature is only slightly higher than cadmium-bearing silver filler metals. Conforms to the EU Reach & RoHS directive.

Features

• Good selection for replacing cadmium alloys
• Joining steel, copper and most brasses
• Complies with the EU Reach & RoHS directive
• Lower temperature cadmium-free silver brazing alloy is only slightly higher than cadmium-bearing alloys
• Medium brazing temperature range
• Produces strong, ductile joints
• Produced with precise wire size and chemical composition

• Weight: 0.07 lbs
• Silver Content: 34-36%
• Copper Content: 31-33%
• Zinc Content: 31-35%
• Other Elements: 0.15%
• Solidus Temperature: 1265 F (685 C)
• Liquidus Temperature: 1390 F (754 C)
• Brazing Temperature Range: 1390 F - 1545 F (755 C - 840 C)
• Electrical Conductivity: 18.9% IACS
• Density: 4.79 t.o./cu.in.
• Cadmium Free: Yes
• Compliance: ANSI/AWS A5.8, ASME SFA5.8 Class BAg-35, ISO 17672 Ag 235, EU REACH, RoHS
