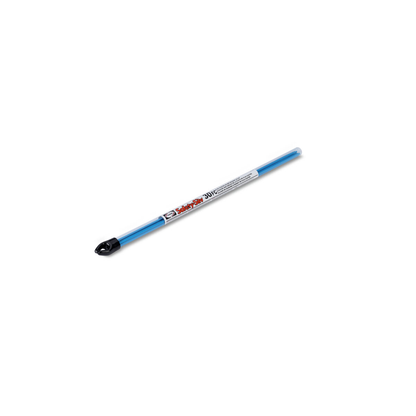

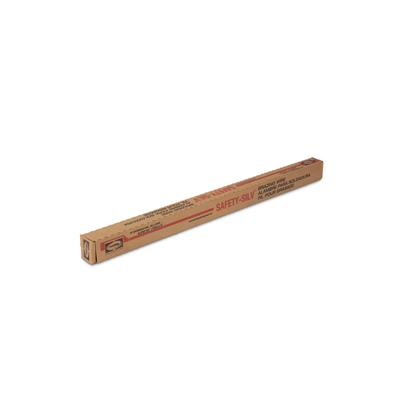

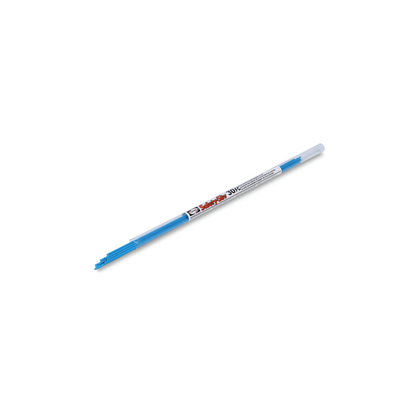

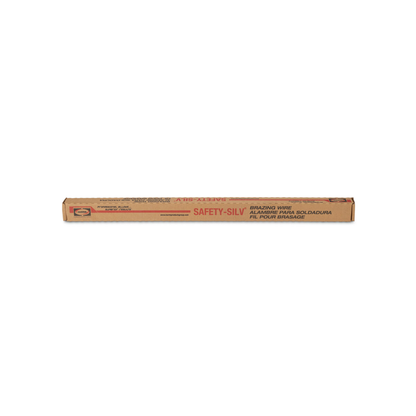

Harris Products Group, 30F3184, Brazing Alloy, Cadmium-Free, Silver, Copper/Brass/Steel, 0.28 lb

Safety-Silv® 30FC high silver brazing filler metal is primarily designed for brazing copper, brass, and steel. This alloy has a wider melting range that allows it to be used where part clearance cannot be tightly controlled. Safety-Silv 30 is often selected as a lower cost, cadmium free, replacement for higher silver content alloys. Safety-Silv 30F should be heated at a rapid rate through its melting range to avoid liquation. Conforms to the EU Reach & RoHS directive.

Features

• Good flow properties and excellent fillet forming qualities
• Moderate ductility and slightly higher melting temperature than alloys containing higher percentages of silver and/or tin
• Wide melting range
• Economical, cadmium-free, replacement for higher silver content alloys
• Designed to braze copper, brass and steel
• Complies with the EU RoHS directive
• Fills connections where tight clearance cannot be maintained

• Weight: 0.28 lbs
• Silver Content: 29.0-31.0%
• Zinc Content: 30.0-34.0%
• Copper Content: 37.0-39.0%
• Other Elements: 0.15%
• Solidus Temperature: 1250 F (677 C)
• Liquidus Temperature: 1410 F (765 C)
• Density: 5.14 oz/cu in
• Electrical Conductivity: 24.8% IACS
• Compliance: ANSI/AWS A5.8 Class BAg-20, ASME SFA5.8 Class BAg-20, ISO 17672 Ag 230, EU RoHS
