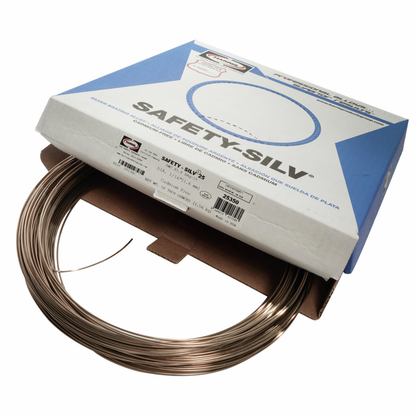

Harris Products Group, 25350, Brazing Alloy, High Silver, Cadmium-Free, Joins Steel/Copper/Brass

Safety-Silv® 25 is a high silver, cadmium-free and economical brazing filler metal. It has good flow properties and excellent fillet forming qualities. Safety-Silv® 25 exhibits moderate ductility and slightly higher melting temperature than filler metals containing higher percentages of silver and/or tin. Chosen often as a cost reduction approach versus lower melting, high silver filler metals. It can be used to join copper, brass, and steel. Conforms to the EU Reach & RoHS directive.

Features

• Produced with precise wire size and chemical composition
• Joining steel, copper and most brasses
• Complies with the EU Reach & RoHS directive
• Economical, cadmium-free, lower silver content brazing alloy
• Moderate ductility and slightly higher melting temperature than alloys containing higher percentages of silver and/or tin
• Medium plastic range
• Good flow properties and excellent fillet forming qualities

• Weight: 0.07 lbs
• Material: Cadmium-free silver brazing alloy
• Silver Content: 24-26%
• Copper Content: 39-41%
• Zinc Content: 31-35%
• Tin Content: 1.5-2.5%
• Other Content: 0.15%
• Solidus Temperature: 1265 F (685 C)
• Liquidus Temperature: 1400 F (760 C)
• Electrical Conductivity: 24.4% IACS
• Electrical Resistivity: 7.06 cm
• Density: 4.71 Troy oz/cu.in.
• Compliance: EU Reach, RoHS, AWS A5.8 BAg-37, ASME SFA 5.8 BAg-37, ISO 17672 Ag 125
