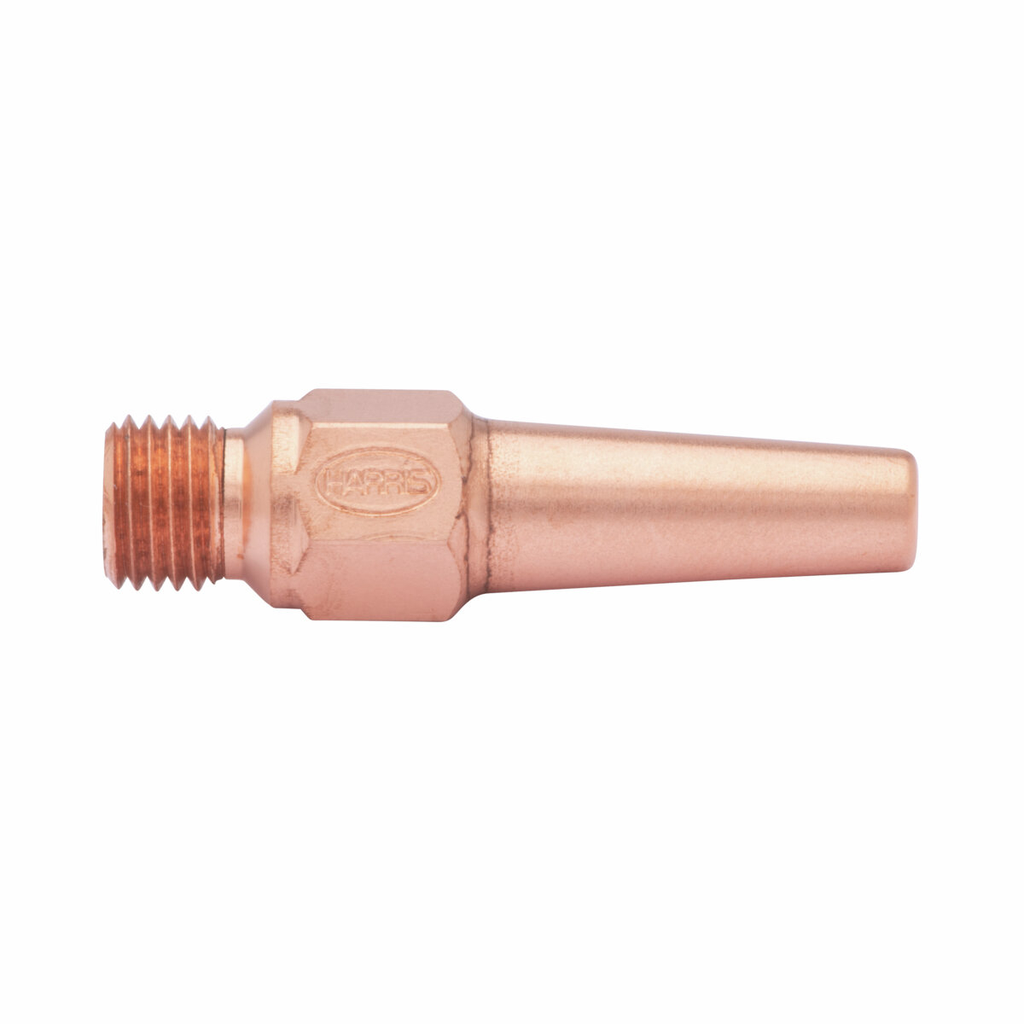

Harris Products Group, 1600280, Separable Brazing Tip, Tellurium Copper, Low Pressure, Counter-Bored End

Model 1390-N separable brazing/heating tip is made from environmentally-friendly tellurium copper. It is designed to be used with a Harris universal tip tube and mixer system for tip sizes 2-10 and sizes 15-80N, eliminating the expense of using a special mixer for each size tip. The 1390-N series is designed with a counter-bored tip end for maximum performance using alternate fuels. It is stable over an extremely broad BTU range. Consequently, one tip size can be used over a very wide range of joint sizes. A unique metal-to-metal seat reduces leaks, eliminating the need for joint sealants. This model uses low-pressure injector-type mixers.

Features

• Tellurium copper construction
• One tip size accommodates a wide range of joint sizes
• Counter-bored tip end for maximum performance
• 1390-N tips can also be used with equal pressure mixers
• Uses a low pressure (F) injecto or low pressure type mixing system
• Alternate fuels separable brazing tip
• Marked with model number and tip size for easy identification
• Stable over a broad BTU range
• No joint sealants required, as metal-to-metal tip contact seat reduces leaks

• Weight: 0.2 lbs
• Tip Size Range: 2-10, 15-80N
• Material: Tellurium Copper
• Fuel Type: Alternate Fuels
• Mixing System: Low Pressure Injector-Type
• Design Feature: Counter-Bored Tip End
• Leak Prevention: Metal-to-Metal Seat
• Performance Range: Broad BTU Range
