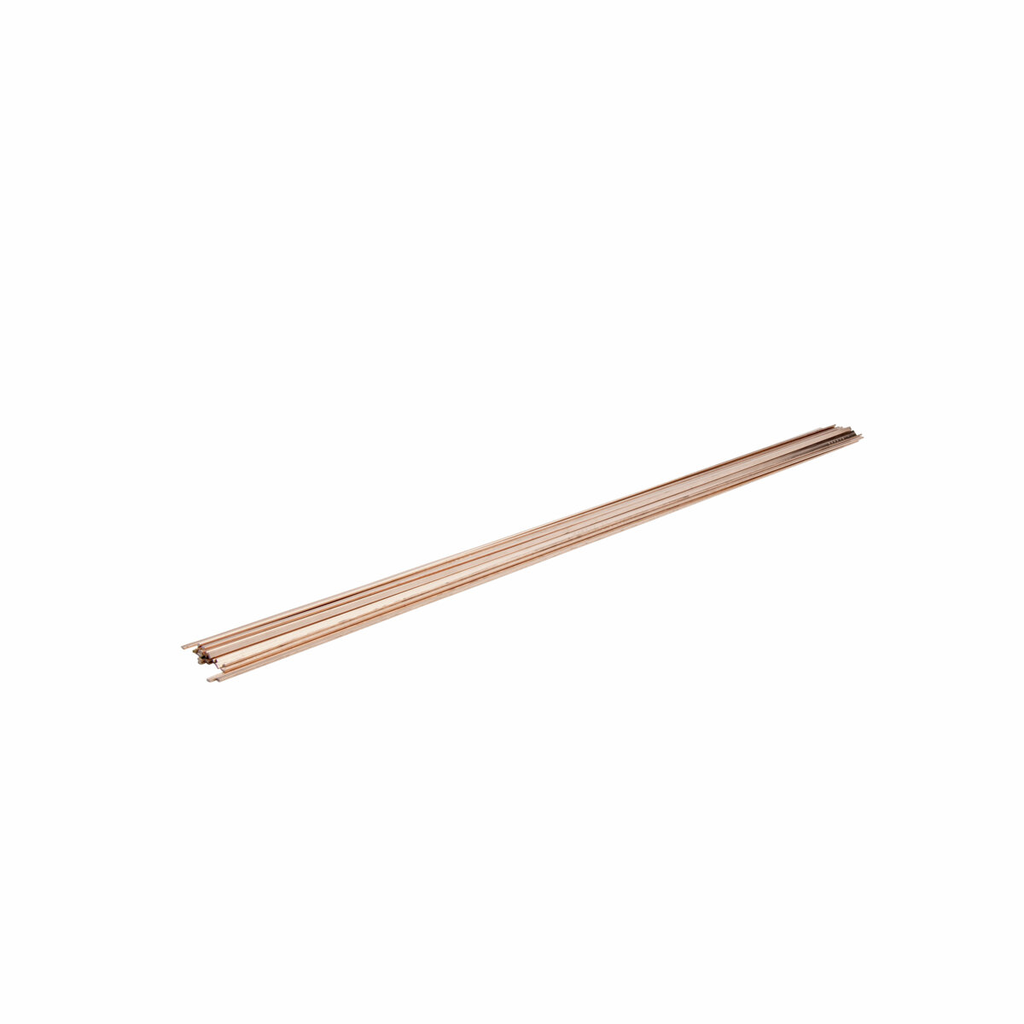

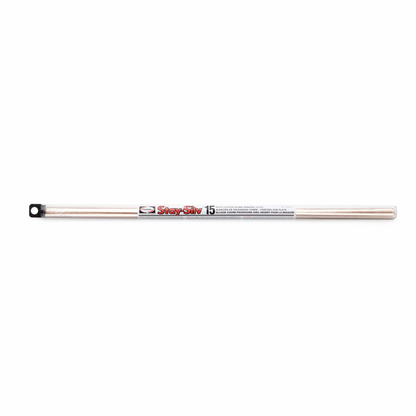

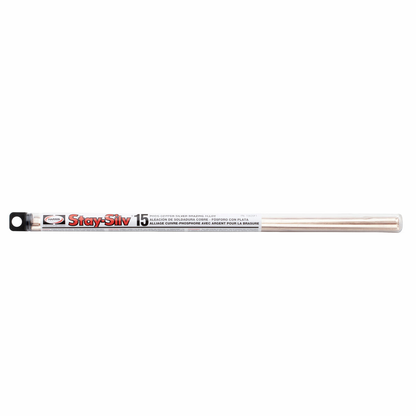

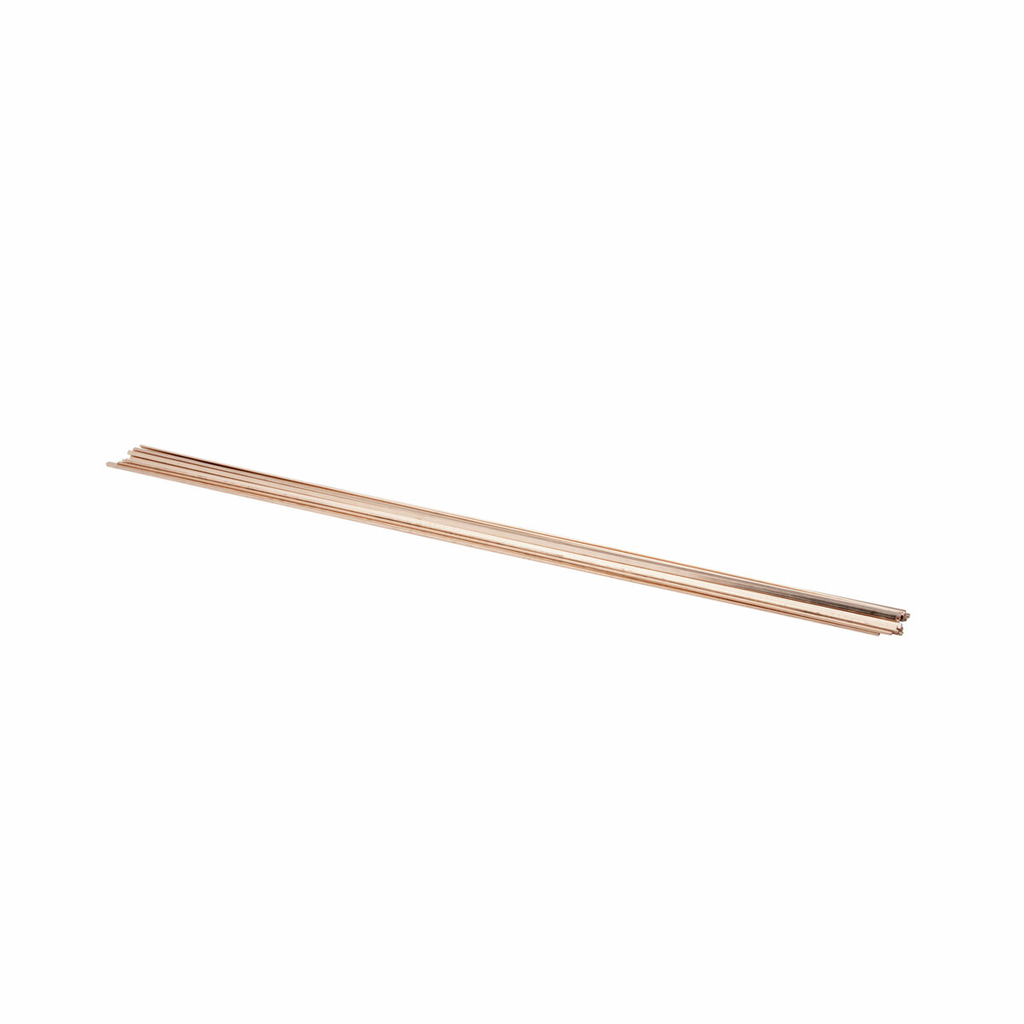

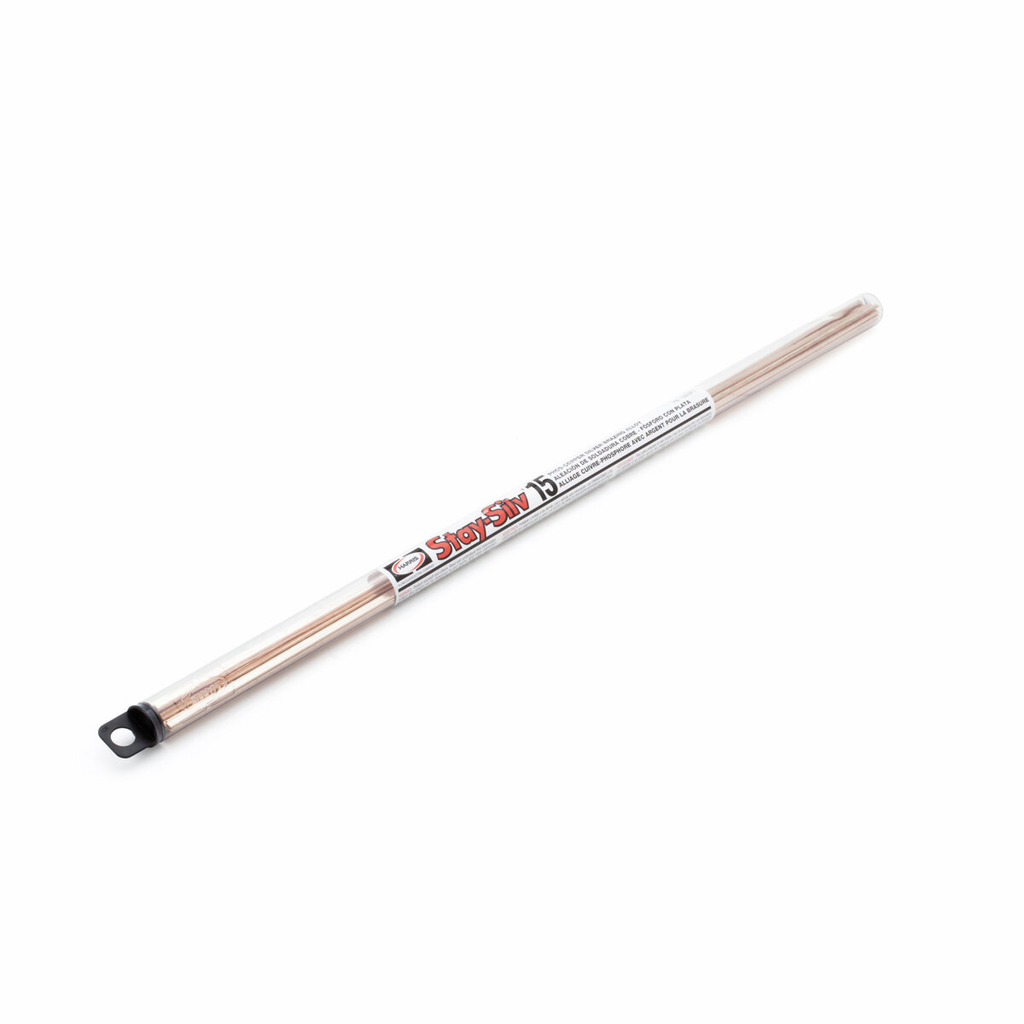

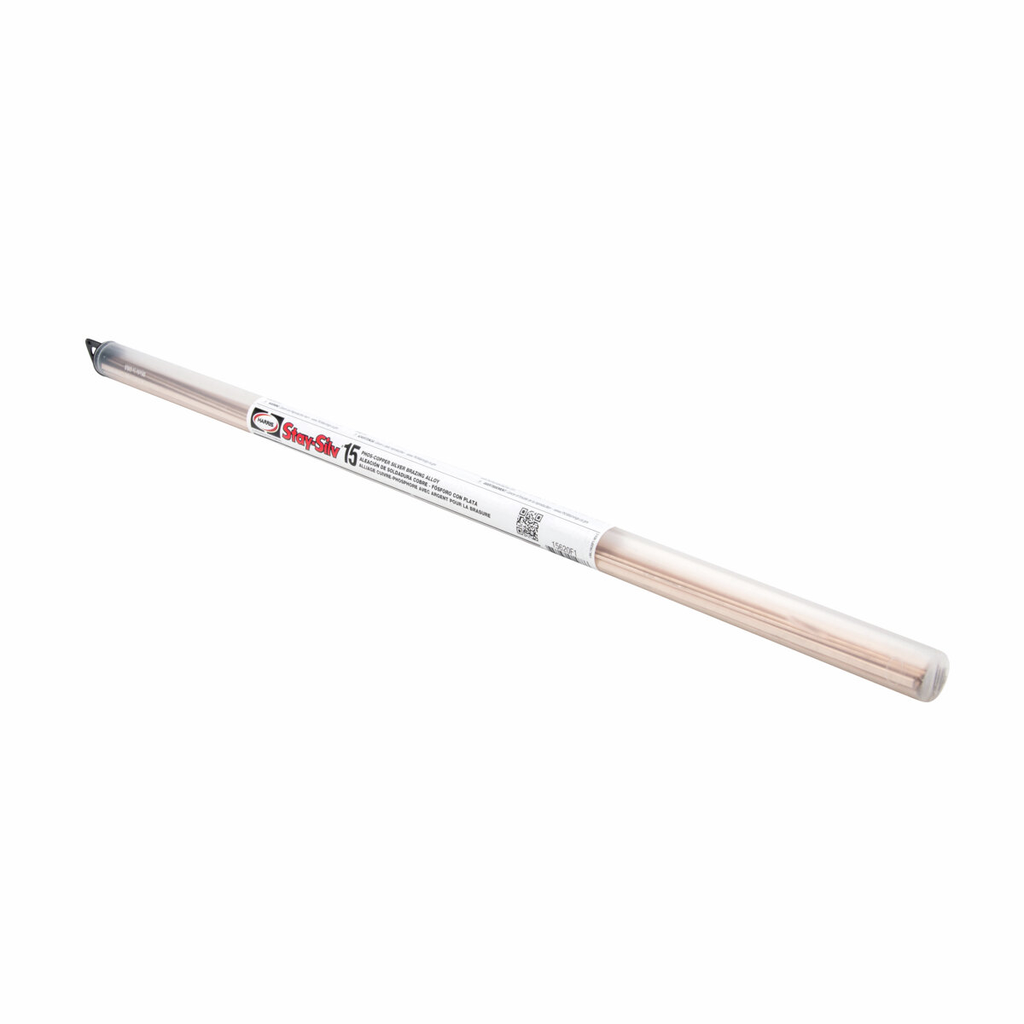

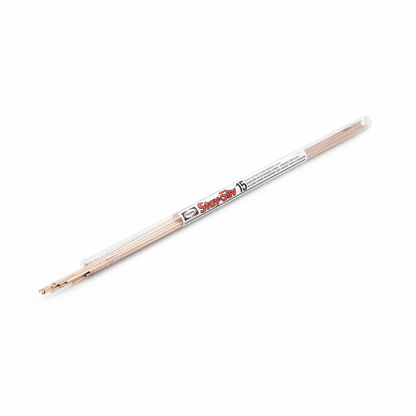

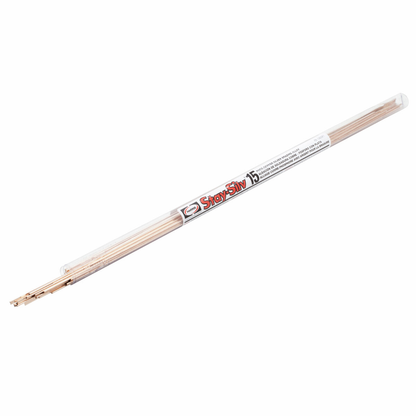

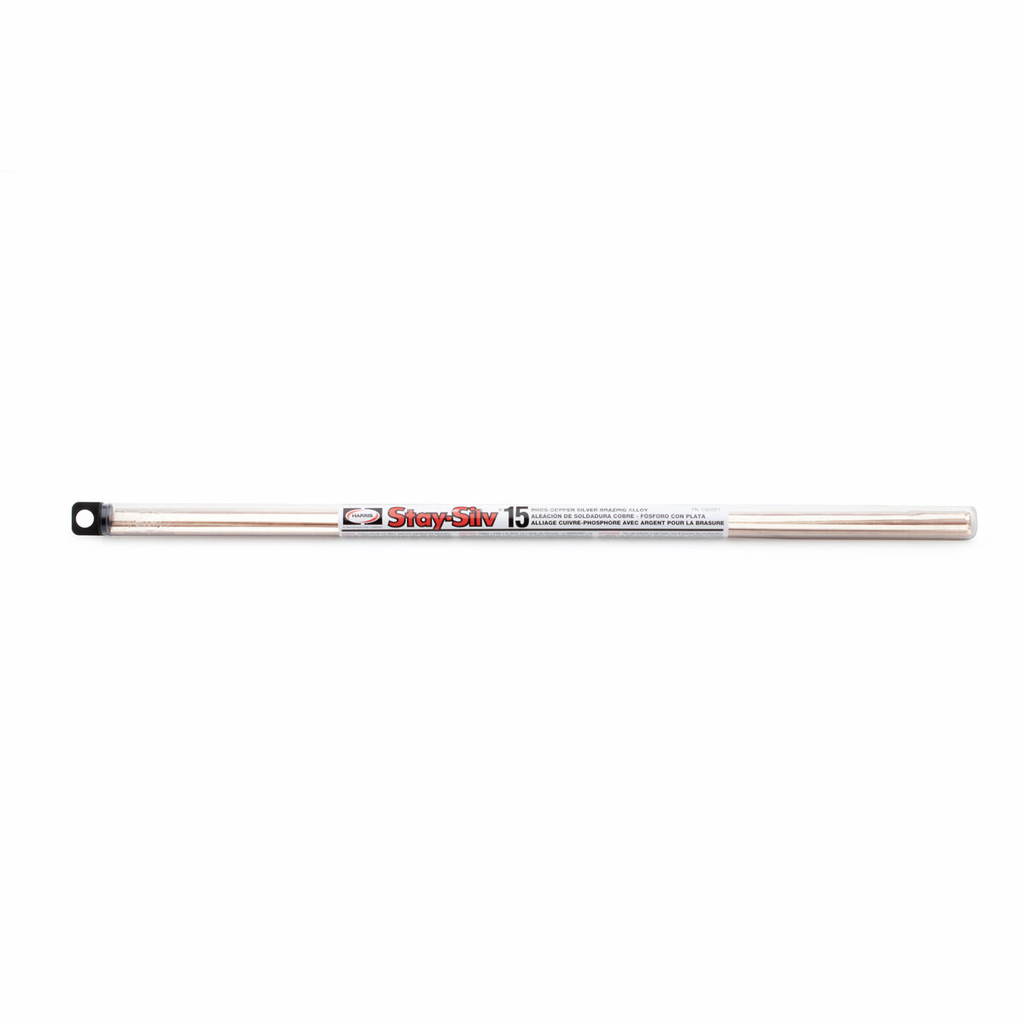

Harris Products Group, 15620F1, Brazing Alloy, Phos-Copper, 0.050 x 1/8 in, 20 in long

Stay-Silv® 15 phos-copper filler metal is the industry standard for air conditioning/refrigeration applications. Its melting range is useful in filling wider clearances while providing good service ductility. Complies with the EU Reach & RoHS directive.

Features

• Corrosion resistance is generally similar to the copper base metal, but phosphorus containing alloys, including Stay-Silv® 15, should not be used if the braze is exposed to sulfur or sulfur compounds in service
• Flux not required for copper brazing as it is self-fluxing. For brazing brass or copper-to-brass Stay-Silv® white flux is suitable for most applications. Harris Eco Smart® boric acid free flux, powder or paste, is an excellent choice to promote sound brazed assemblies
• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• Popular choice for copper brazing air conditioning and refrigeration connections
• Flows into tight connections when heated above its liquidus temperature
• Popular brazing filler metal for HVAC and refrigeration connections
• Not recommended for brazing steel or other ferrous metals due to sufficient lack of joint ductility
• Complies with the EU Reach & RoHS directive
• Wide melting range allows operators to fill loose connections and "cap" or "build-up" around the finished joint. When heated above its liquidus it will penetrate tight connections.
• Suitable for brazing low nickel (10% maximum) copper/nickel base metals

• Length: 20 in
• Dimensions: 0.050 x 1/8 in
• Material: Phos-Copper
• Silver Content: 14.5 - 15.5%
• Phosphorus Content: 4.8 - 5.2%
• Copper Content: Remainder
• Other Elements: 0.15%
• Solidus Temperature: 1190 F (643 C)
• Liquidus Temperature: 1475 F (802 C)
• Brazing Temperature Range: 1300 F - 1500 F (704 C - 816 C)
• Electrical Conductivity: 9.9% IACS
• Electrical Resistivity: 17.4 cm
• Weight: 1.1 lbs
• Compliance: EU Reach, RoHS, ANSI/AWS A5.8 Class BCuP-5, ASME SFA 5.8 Class BCuP-5, QQ-B-654A BCuP-5, ISO 17672 CuP 284
