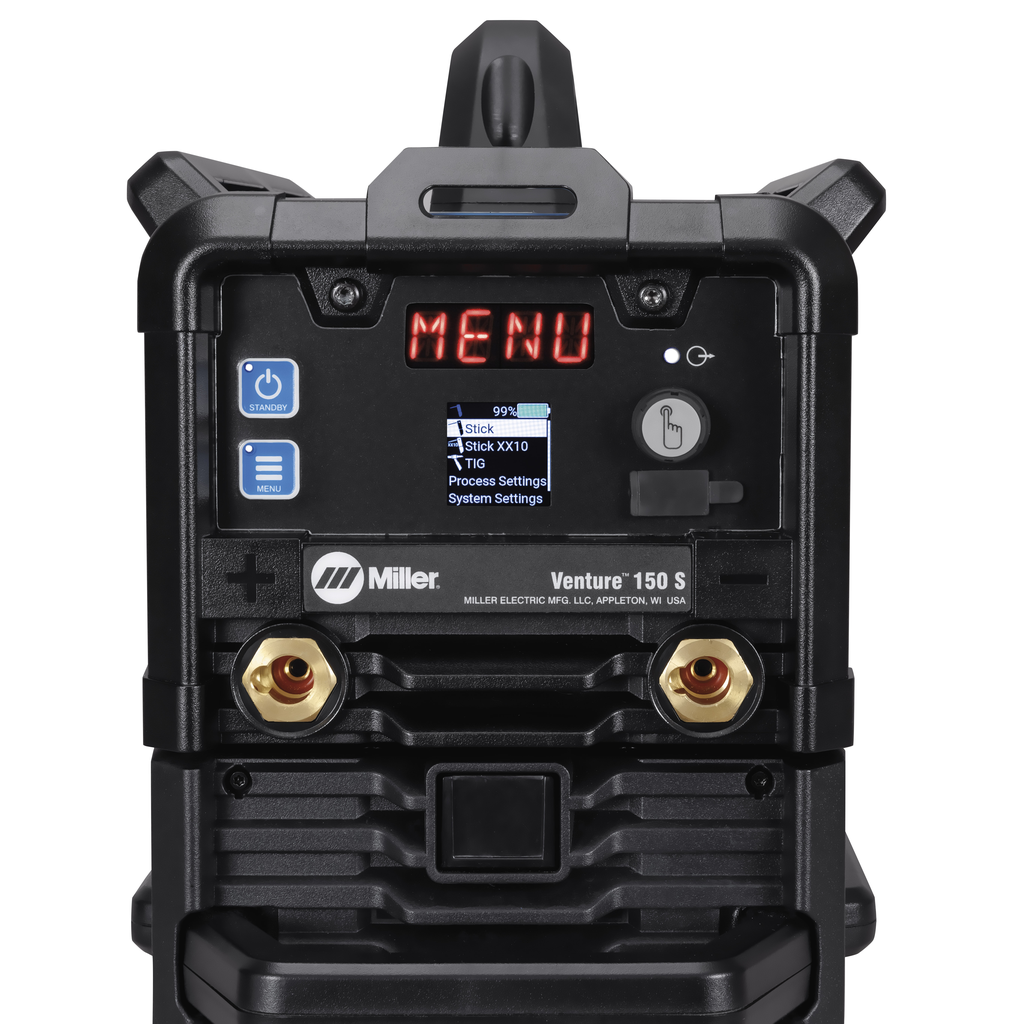

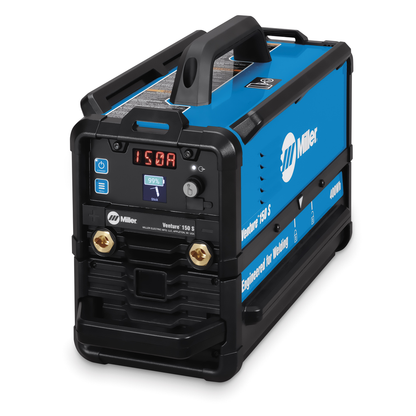

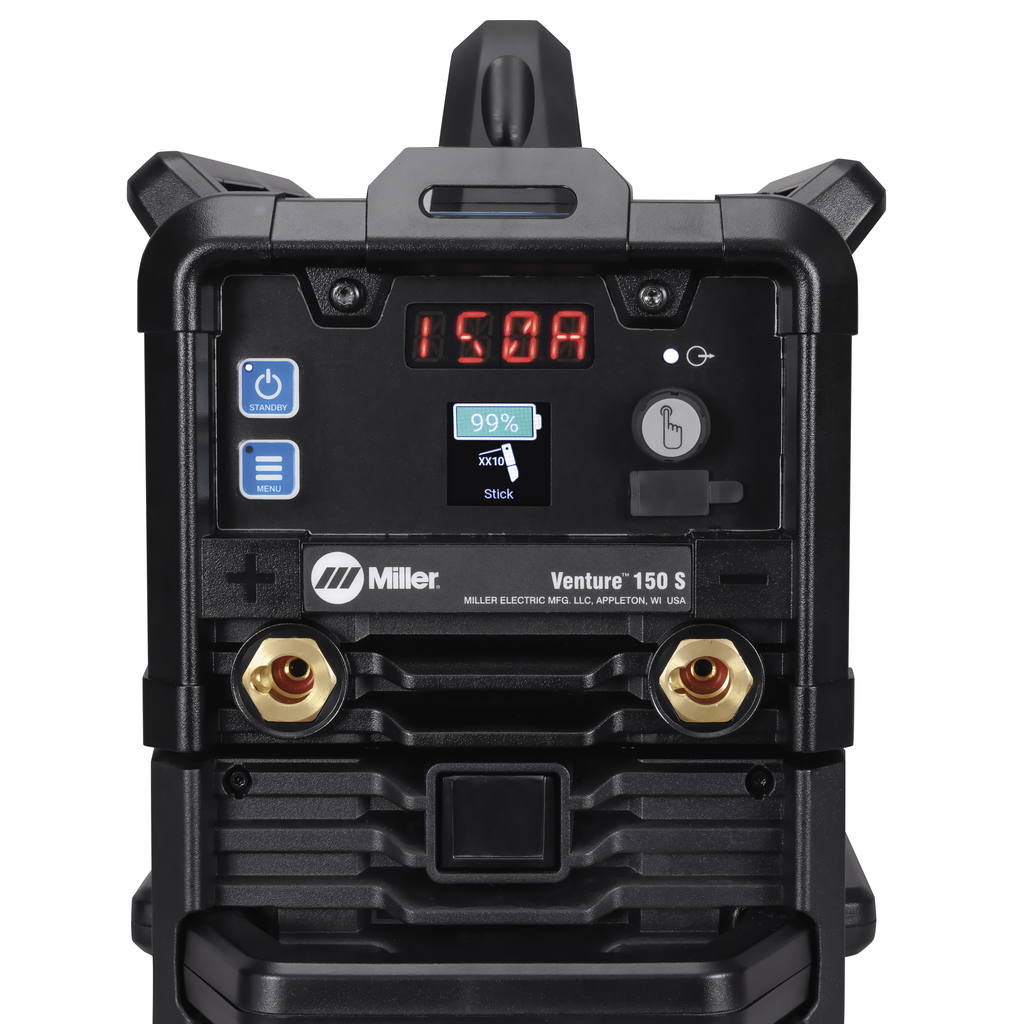

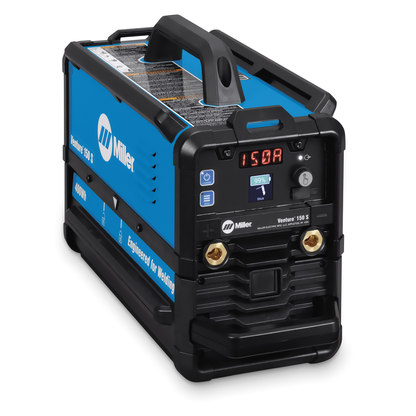

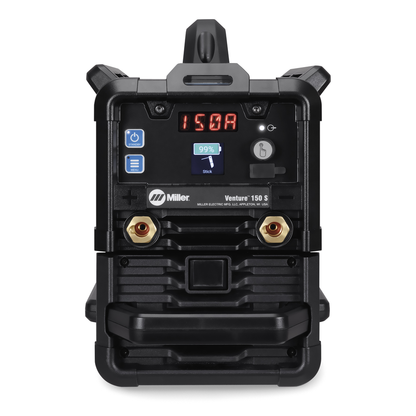

Miller Electric VentureTM 150 S with Battery and Charger Package - 951000202

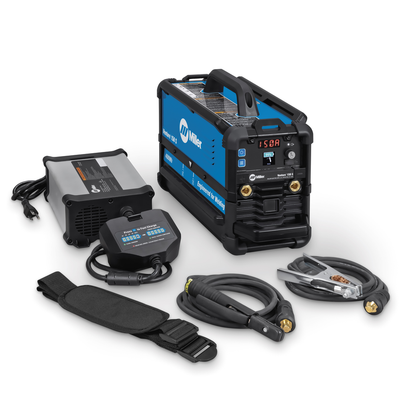

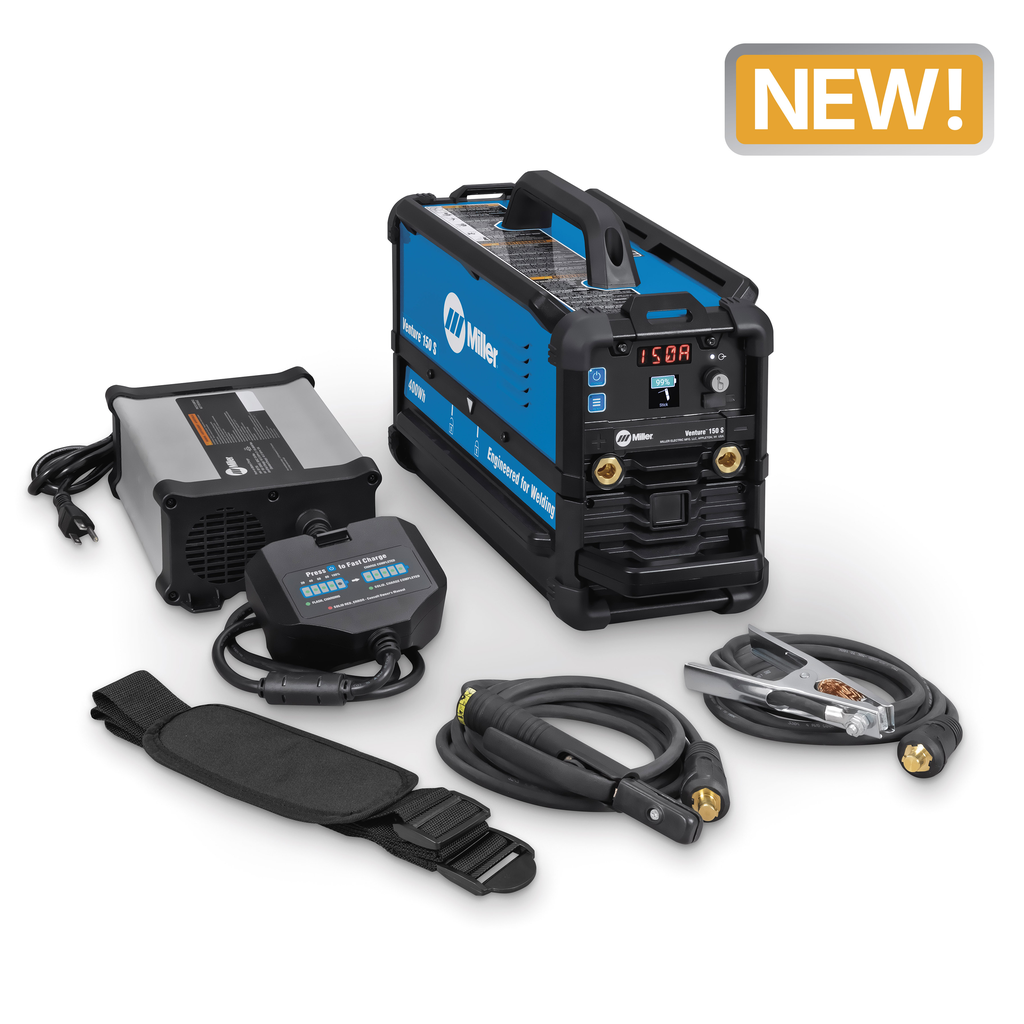

Package includes the Venture 150 S, 400Wh Battery Pack, and Charger. The Venture 150 S lightweight and compact battery powered Stick/TIG welder with swappable battery packs engineered specifically for welding.

Features

• Compact Design: Light, convenient and easy to carry between job sites.
• Engineered Specifically For Welding: Swappable battery packs so you can weld all day.
• Save Time: Faster setup and pack-up saves up to 250 hours annually — that’s more time for welding.
• Hot Start™ Technology: Adaptive control provides positive arc starts without sticking.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Thermal Overload Protection: Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
• Lift-Arc™: Provides arc starting that minimizes contamination of the electrode without the use of high frequency.
• 6010 Stick Electrode Capability: Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• Created for Versatility: Batteries are lightweight and swappable, so users can weld anywhere
• Reliable Output: 100% duty cycle at maximum output

• Amperage Range: Stick: 20 - 150 A; TIG: 10 - 160 A
• Max Open Circuit Voltage: 80 VDC
• Battery Voltage: 57.6 VDC
• Battery Capacity: 400 Wh
• TIG Arc Time Per Charge: 15.54 minutes at 100A; 8.33 minutes at 160A
• Battery Charging Options: Fast: 0-95% in <30 mins; Standard: 0-95% in <60 mins
• Weld Output: CC
• Weldable Metals: Stainless Steel; Steel
• Current Type: AC; DC
• Material Thickness: Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)
• Stick Electrode Consumption Per Charge: 8.02 x 1/8 in. 7018 at 110A; 13.45 x 3/32 in. 7018 at 80A; 14.49 x 3/32 in. 6010 at 60A; 8.14 x 1/8 in. 6010 at 90A; 5.79 x 1/8 in. 7018 at 150A; 5.57 x 5/32 in. 6010 at 120A
• Input Phase: 1-Phase
• Machine Input Voltage: 57.6 VDC
• Charger Input Voltage: 120 V
• Input Frequency: 50/60 Hz
• Dimensions: 13.2 in H, 8.4 in W, 19 in D
• Net Weight: 26.5 lb (12 kg)
• Compliance: CSA Std. E60974-1
• Country of Origin: United States
• Battery Lifespan: Over 1,000 charge cycles
