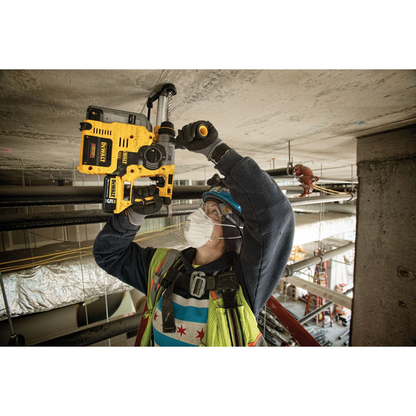

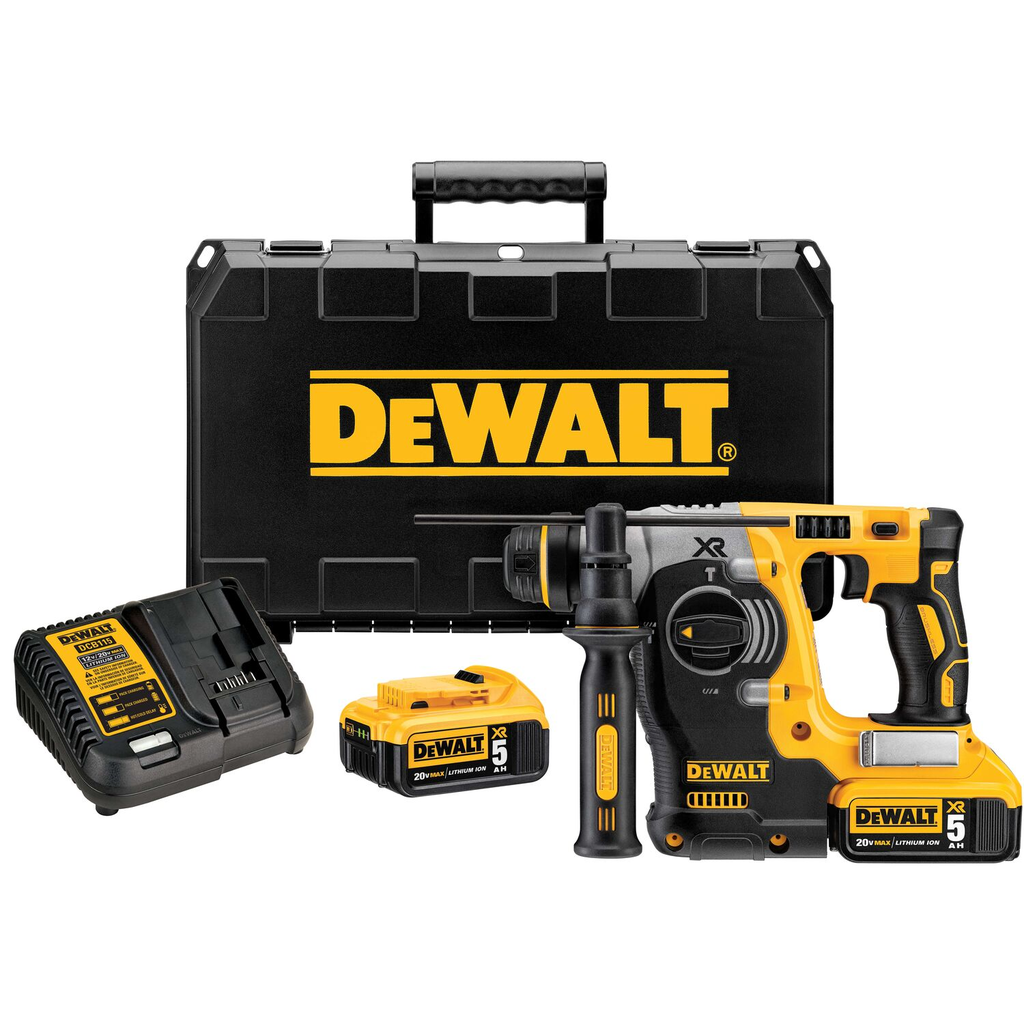

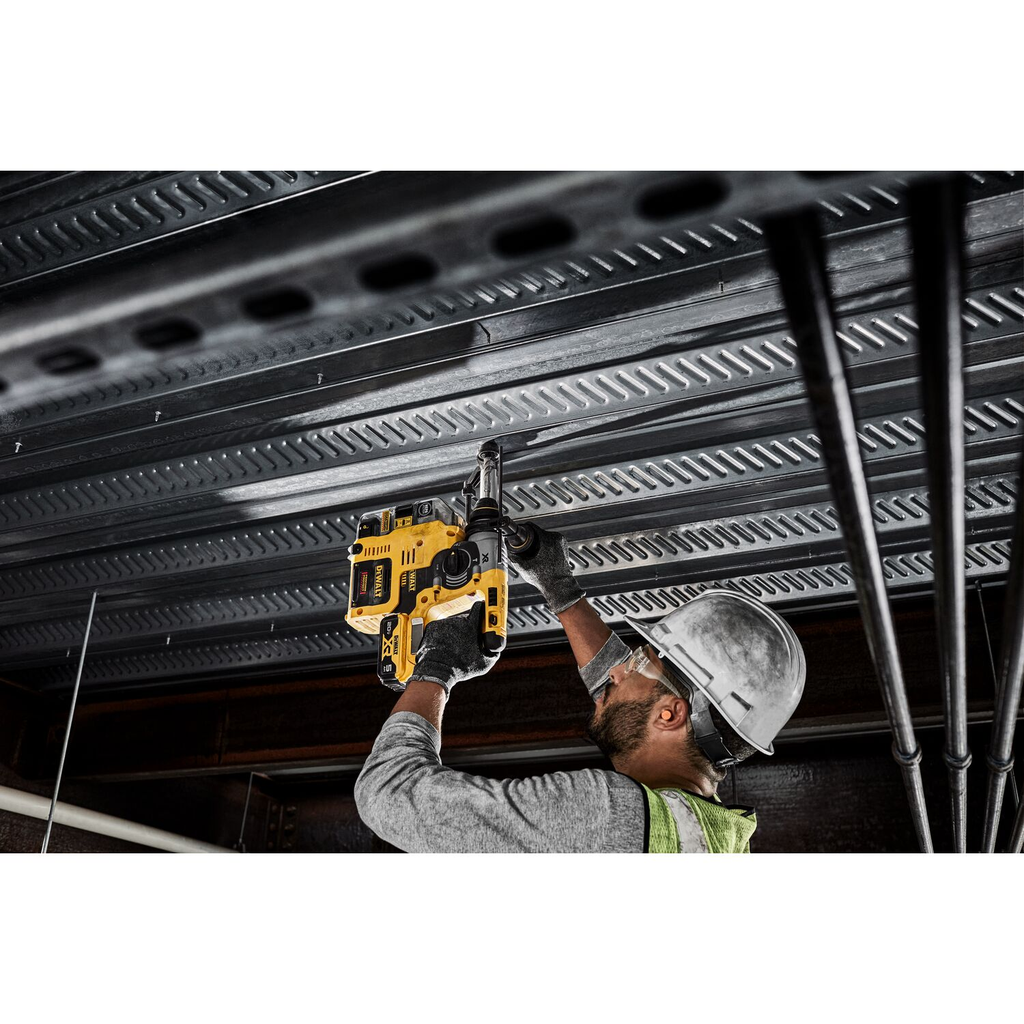

Complete tough applications with the 20V MAX XR 1 in. SDS PLUS L-Shape Rotary Hammer. The lightweight design makes this tool ideal for rod hanging, seismic and safety attachments, cable tray and strut mounting, clamp mounting, and rail mounting. Built with safety in mind, this hammer features the SHOCKS ACTIVE VIBRATION CONTROL System to help limit the amount of vibration felt at the handles by the user. Use with DWH303DH Onboard Extractor for OSHA Table 1 Compliance. For user convenience, this product is packaged with (2) 20V MAX batteries, a charger, and a durable kit box for portability on the jobsite.

Features

  • Rotating dial to set tool to a specific application mode - drill, hammer drill, or chip.
  • Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
  • SHOCKS active vibration control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.

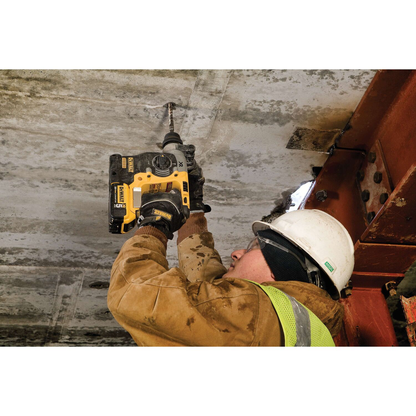

  • 2.1 joules of impact energy for fast drilling in concrete.

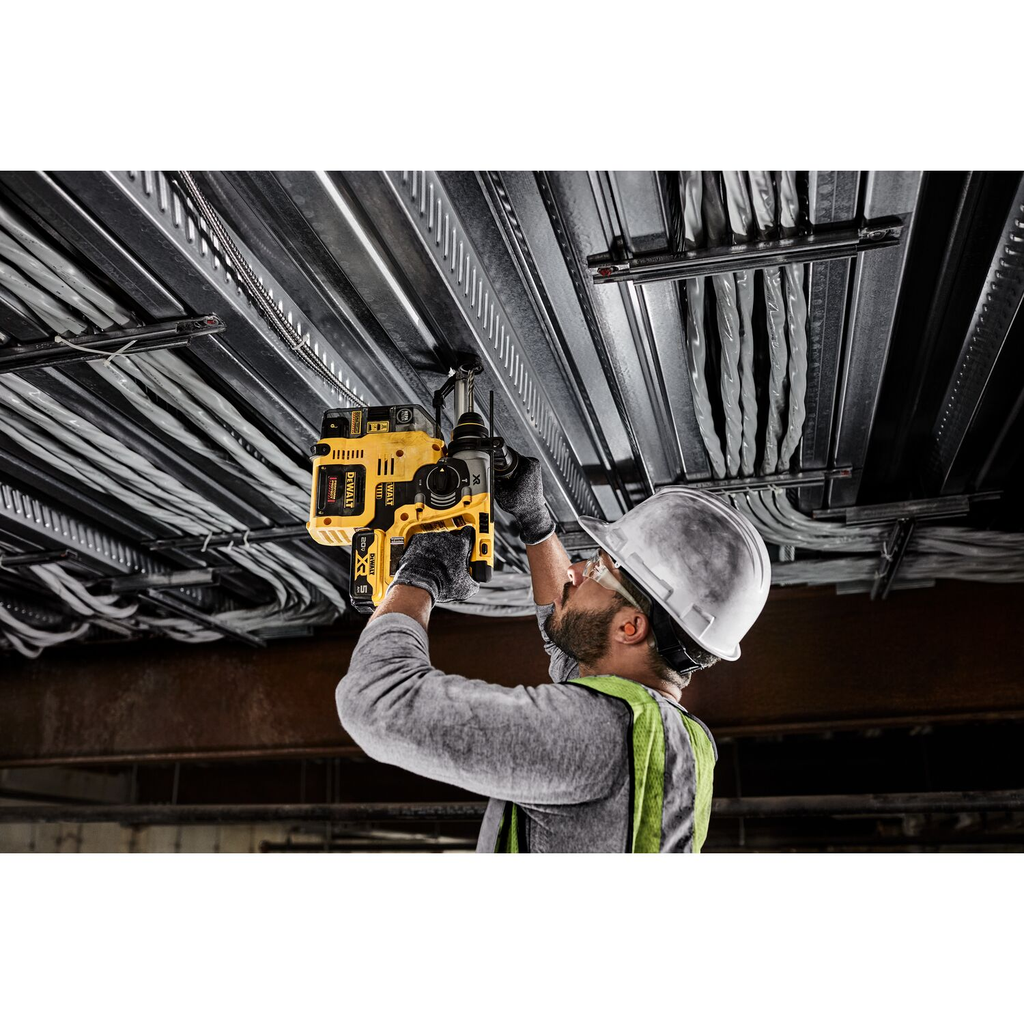

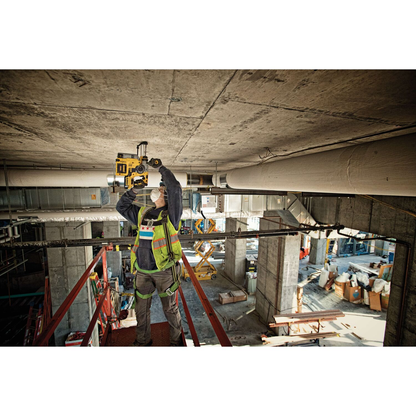

  • Lightweight design makes this tool ideal for rod hanging, seismic & safety attachments, cable tray & strut mounting, clamp mounting, and rail mounting.
  • Osha table 1 compliant when paired with dwh303dh on board extractor.

Disclaimer

  • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Prop 65

  • Yes

Includes

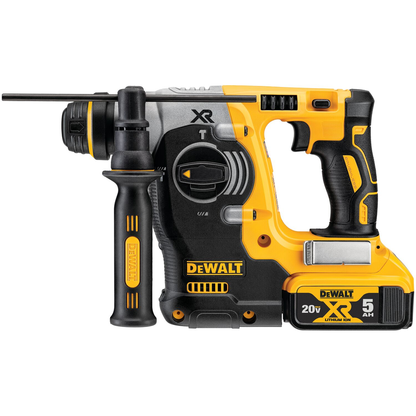

  • (1) DCH273 Rotary Hammer
  • Voltage: 20 V
  • Tool Power Output: 400 UWO
  • Impacts / Blows Per Minute: 4600
  • Maximum Speed: 1100 RPM
  • Impact Energy: 2.1 joules
  • Chuck Size: 1 in.
  • Chuck Type: Keyless
  • Motor Type: Brushless
  • Cordless Vs. Corded: Cordless
  • Length: 18.9 in
  • Width: 11.8 in
  • Height: 4.9 in
  • Weight: 13.7 lbs
  • Handle Type: D-Ring
  • Handle Material: Plastic
  • Housing Material: Plastic
  • Battery Type: 20V MAX Lithium Ion
  • Battery Amp Hours: 5 Ah
  • Battery Required: Yes
  • Battery Included: Yes
  • Number Of Batteries Required: 1
  • Reversible: No
  • Variable Speed: Yes
  • Side Handle Included: Yes
  • Maximum Capacity Wood: 1.0 in
  • Maximum Capacity Steel: 0.5 in
  • Maximum Capacity Concrete: 1.0 in
  • Drive Size: 1 in
  • Product Finish: Yellow/Black
  • Country of Origin: China
  • Kit: Yes
  • Charger Included: Yes
  • Charger Type: Jack Plug
  • Case Type: Hard
  • Forward And Reverse Switch Included: Yes
  • Bluetooth Compatibility: No
  • Works With Ios: No
  • Works With Android: No
  • Wifi Compatibility: No
  • Product Type: Rotary Hammer Drill
  • Warranty: 3 years
