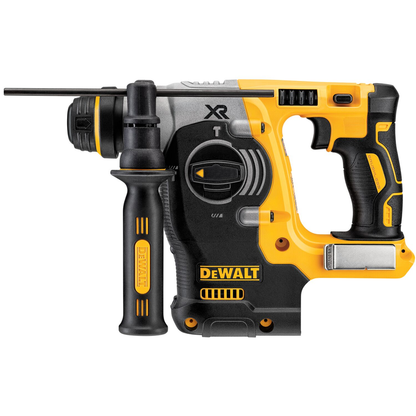

Complete rod hanging, seismic and safety attachments, cable tray and strut mounting, clamp mounting, and/or rail mounting applications with the 20V MAX XR 1 in. Rotary Hammer. This high-performance drill is powered by a brushless motor and a durable German-engineered mechanism that delivers 2.1 Joules of impact energy. Equipped with SHOCKS ACTIVE VIBRATION CONTROL, this tool helps maximize productivity on tough jobs.

Features

  • 3 modes: drilling, percussion and chiseling selector
  • Carbon-free engine: less maintenance and longer life
  • No load speed: 0-1100 RPM
  • 2.1j impact energy (epta 05/2009): for faster drilling and demolition
  • Vibration measurement: 6.6 m/s2. protects the user from the effects of vibration, allowing for faster work with less fatigue.
  • Strokes per minute: 0-4600

Prop 65

  • Yes

Includes

  • (1) DCH273 Rotary hammer | (1) 360° Side handle | (1) Depth rod | (1) Adjustable hook

Disclaimer

  • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
  • Voltage: 20 V MAX
  • No Load Speed: 0-1100 RPM
  • Stroke Rate: 0-4600 SPM
  • Impact Energy: 2.1 J
  • Weight: 6.393 lbs
  • Length: 12.992 in
  • Width: 8.5 in
  • Height: 4.1 in
  • Maximum Capacity Wood: 1 in
  • Maximum Capacity Steel: 0.5 in
  • Maximum Capacity Concrete: 1 in
  • Chuck Type: SDS-Plus
  • Chuck Size: 1 in
  • Drive Size: 1 in
  • Material: Plastic (Housing and Handle)
  • Motor Type: Brushless
  • Variable Speed: Yes
  • Side Handle Included: Yes
  • Forward And Reverse Switch Included: Yes
  • Cordless: Yes, 20V MAX Lithium Ion Battery
  • Handle Type: D-Ring
  • Keyless: Yes
  • Product Type: Rotary Hammer Drill
  • Product Finish: Yellow/Black
  • Country of Origin: China
  • Warranty: 3 Year Limited Warranty
