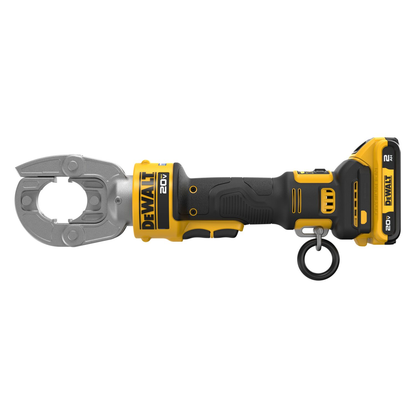

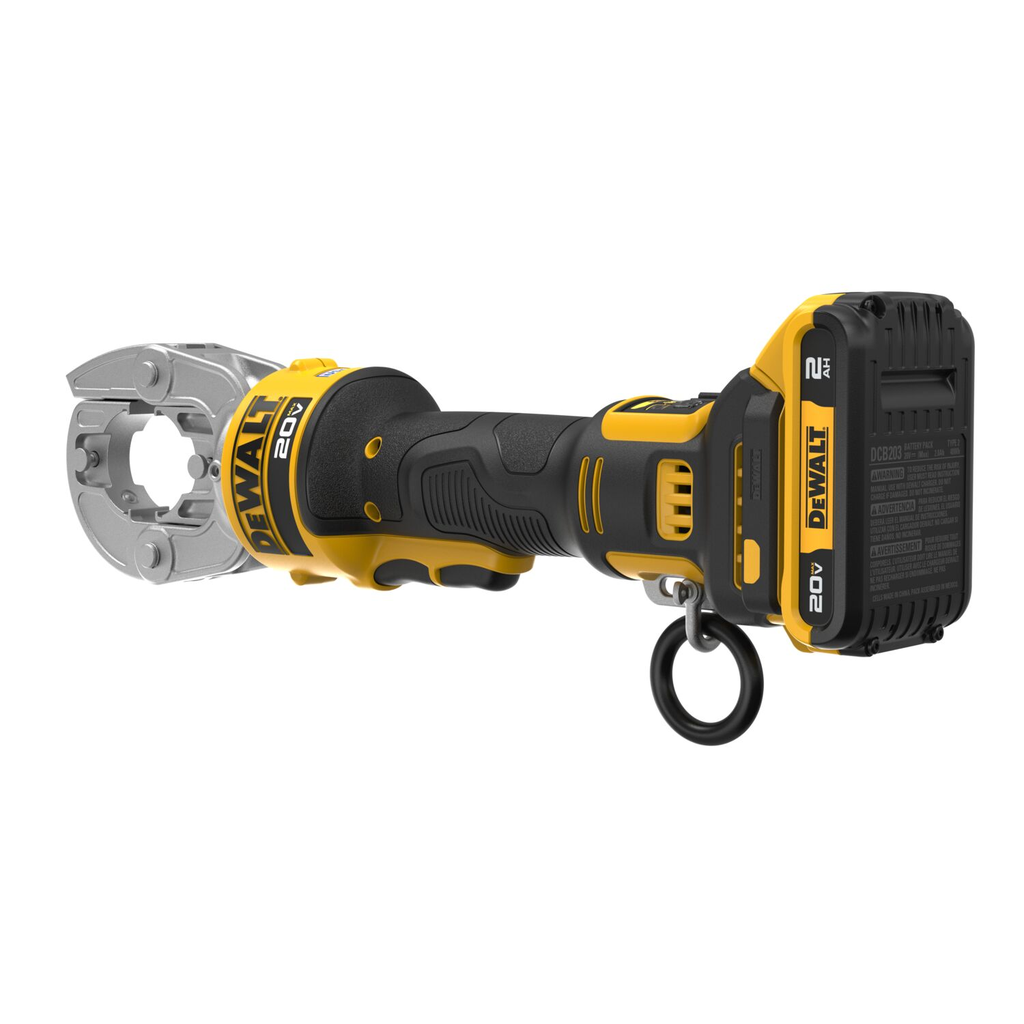

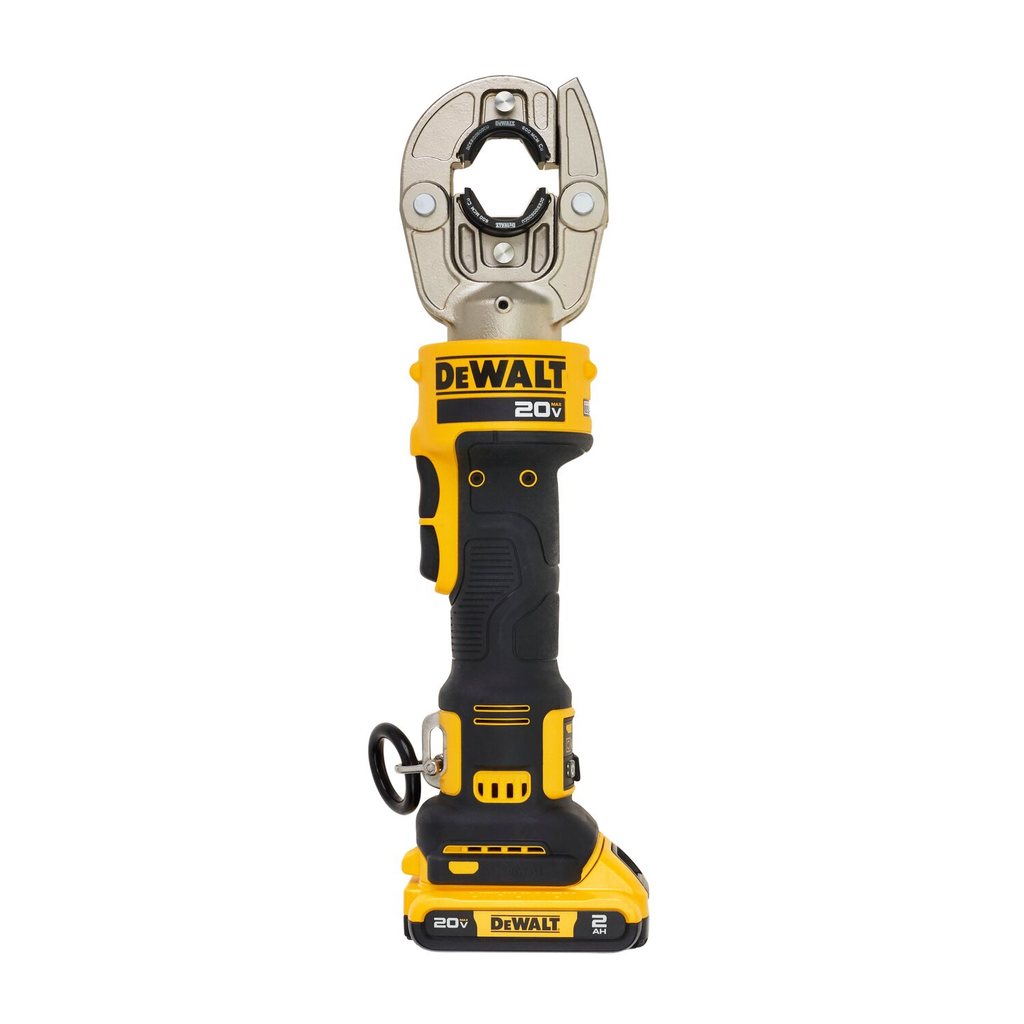

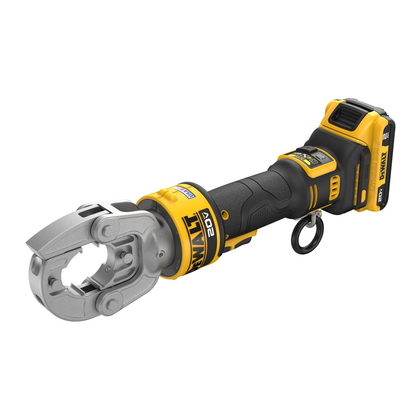

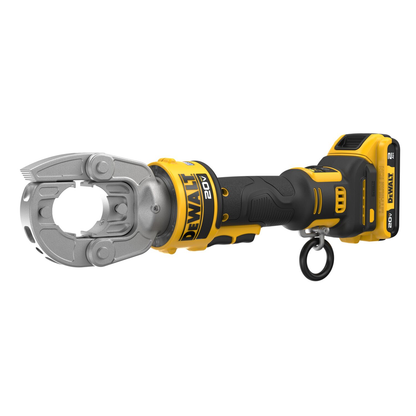

DEWALT, DCE310D2, Compact Died Crimping Tool Kit, 20V MAX, 600 MCM Cu / 350 MCM Al, Lithium Ion, 180 head rotation

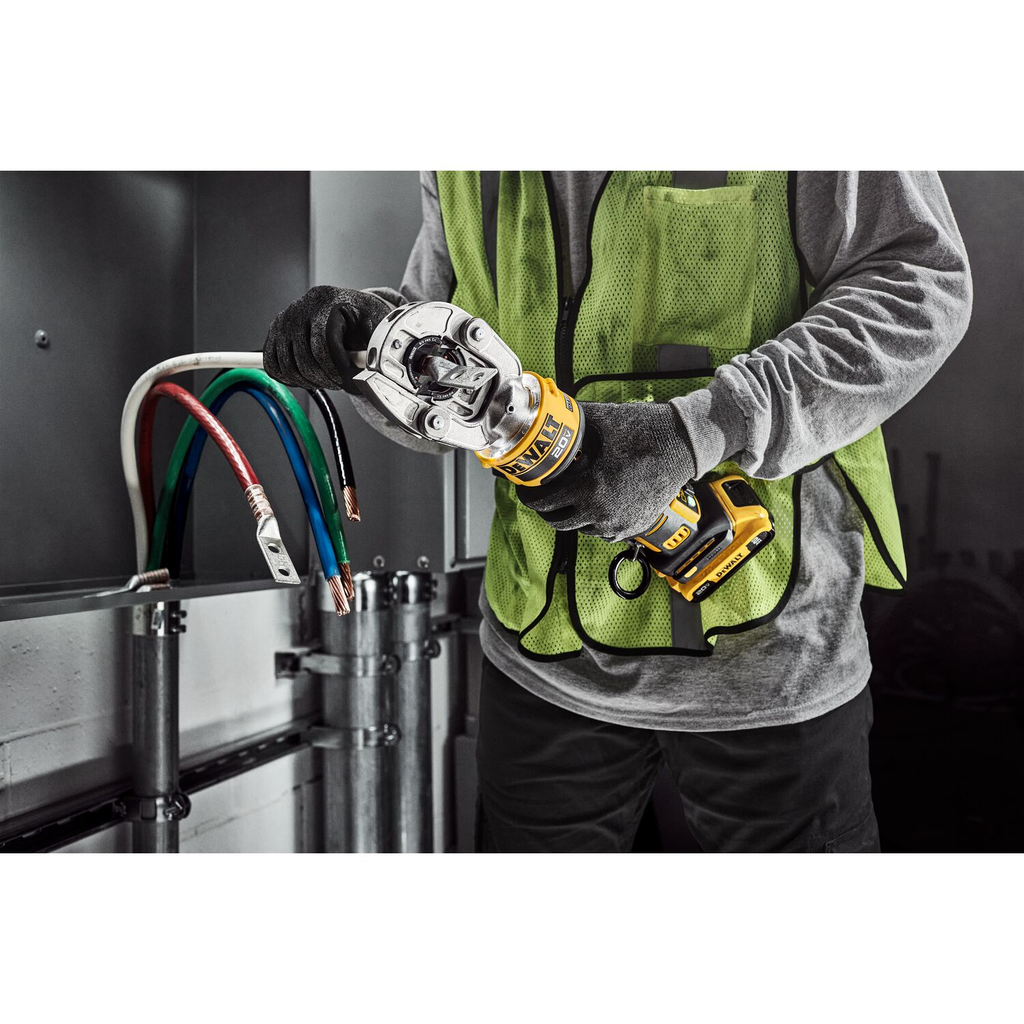

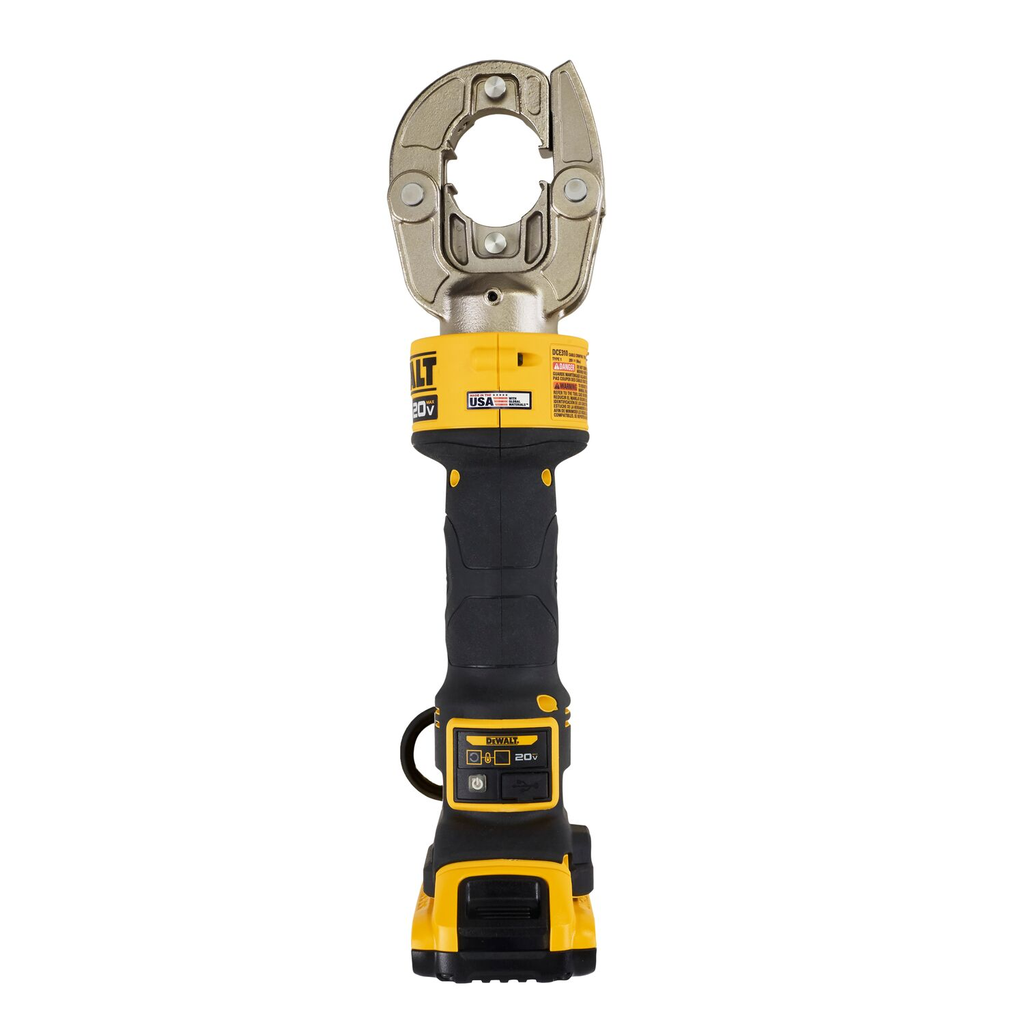

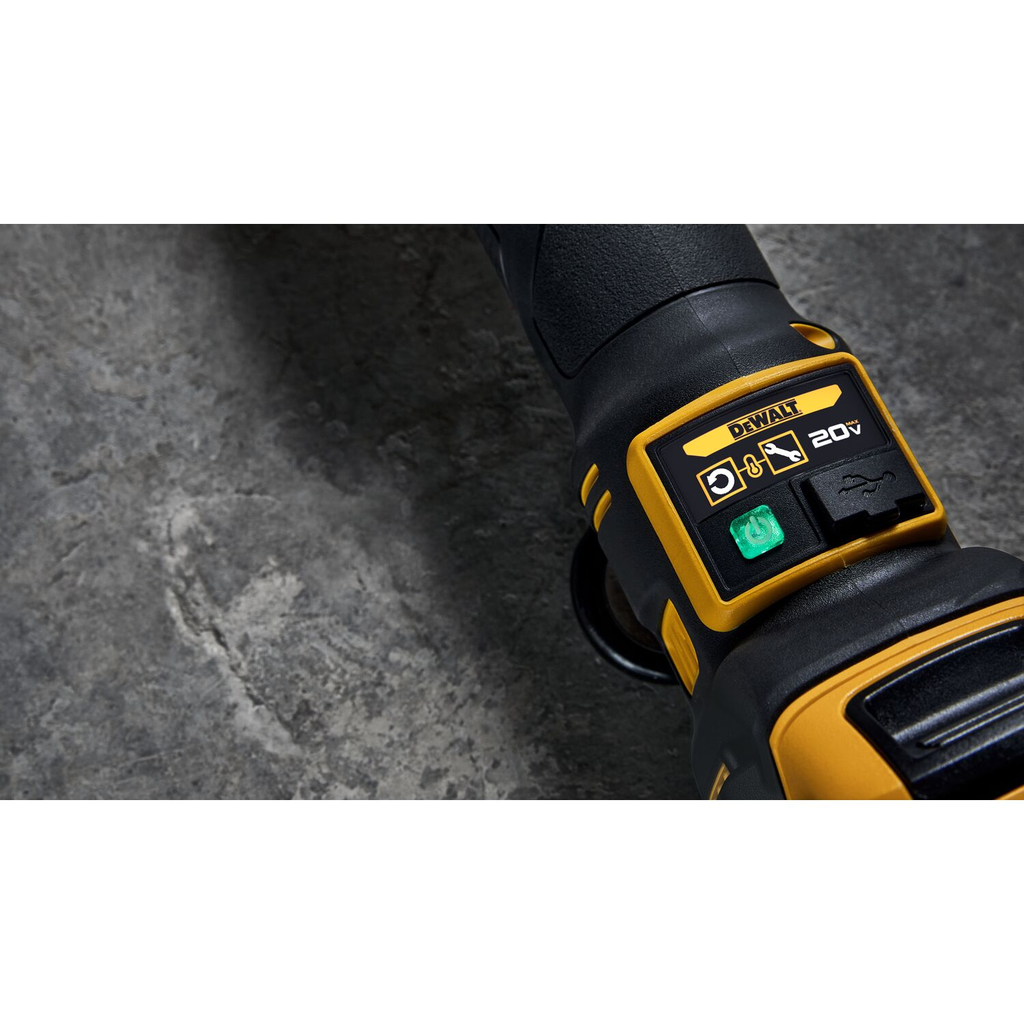

The DEWALT Compact Died Crimping Tool produces cULus Classified crimps using compatible connectors from leading manufacturers (see user manual for compliant chart of dies and connectors). The tool accepts DEWALT U-Type dies (sold separately) and has a capacity from #8 - 600 MCM Cu / #8 - 350 MCM Al. A 180° pivoting head and inline body allows the crimper to maneuver into tight spaces while also allowing for one-handed operation. The tool features Crimp Connect software, an onboard intelligence system integrated into the tool that provides detailed reports of successfully completed cycles by the tool, as well as tool calibration and service history. An integrated LED interface is used to communicate power on/off, cycle completion, and if recalibration or service is needed. A bright LED ring helps to illuminate the crimping area when working in dark spaces. The tool also includes a shoulder strap for convenience when transporting around the jobsite.

Features

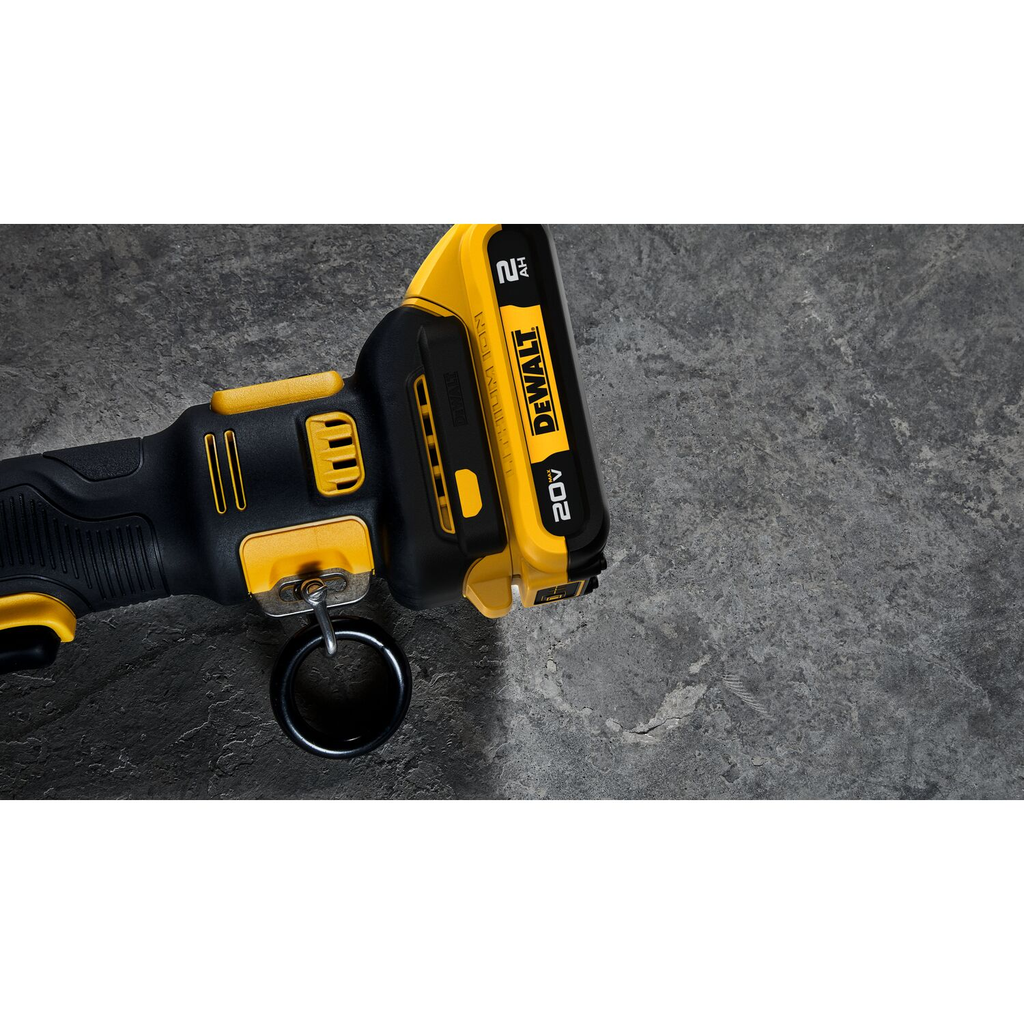

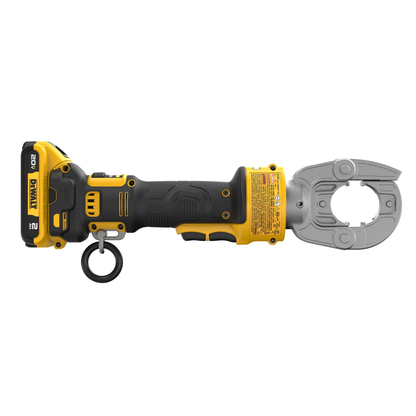

• Shoulder strap and connection ring for portability

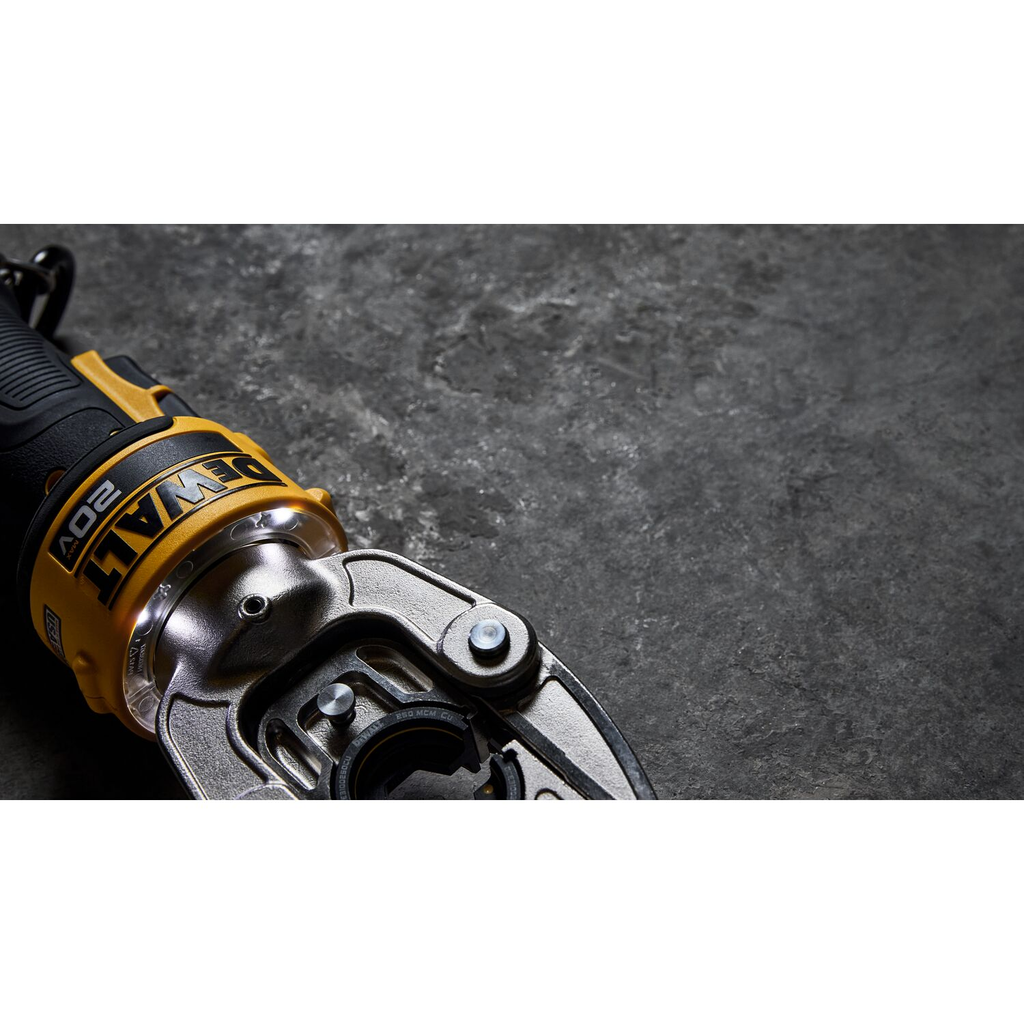

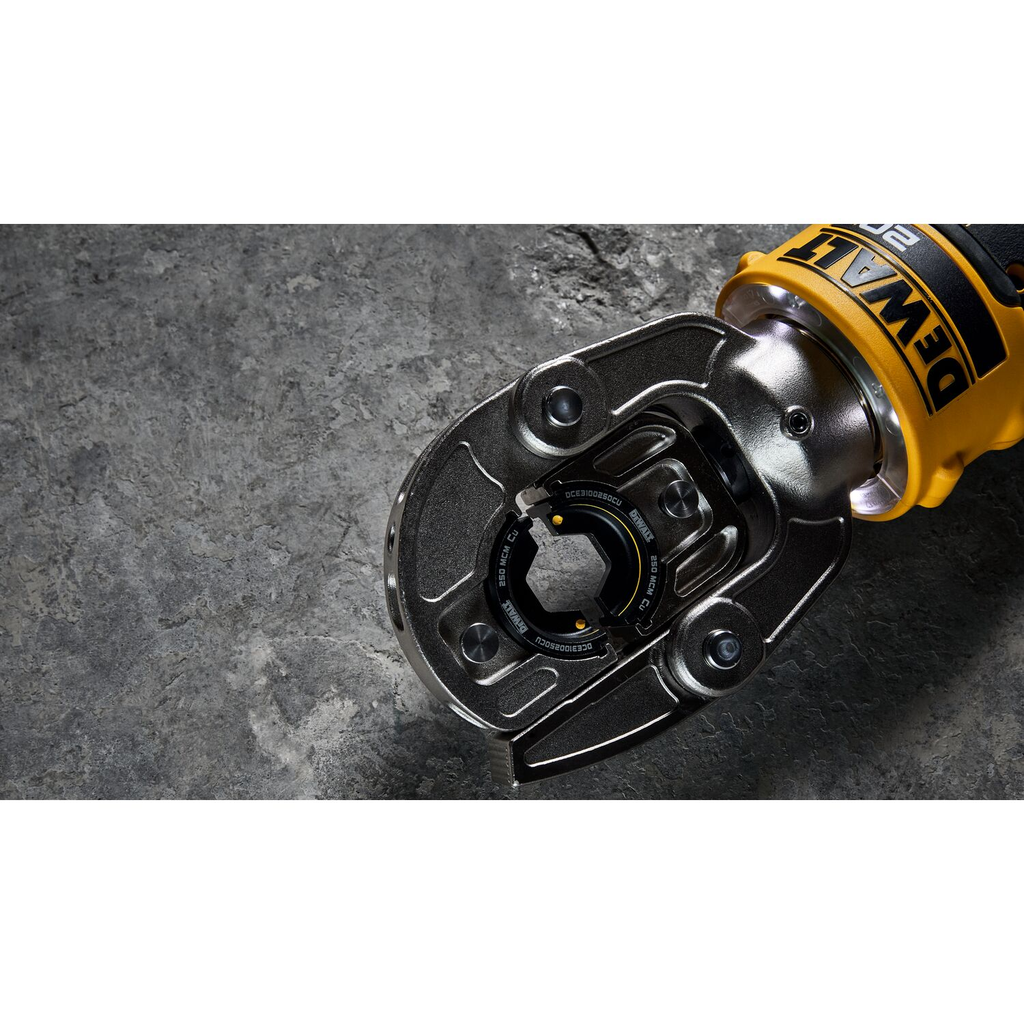

• Accepts DEWALT U-Type Dies and completes UL Classified Crimps with leading manufacturers' connectors (sold separately)
• Asset Management on the Jobsite: Chip pocket accepts Tool Connect Chip and connects with Tool Connect Site Manager app for seamless worksite organization (DCE042 sold separately)
• Bright LED ring to illuminate work area

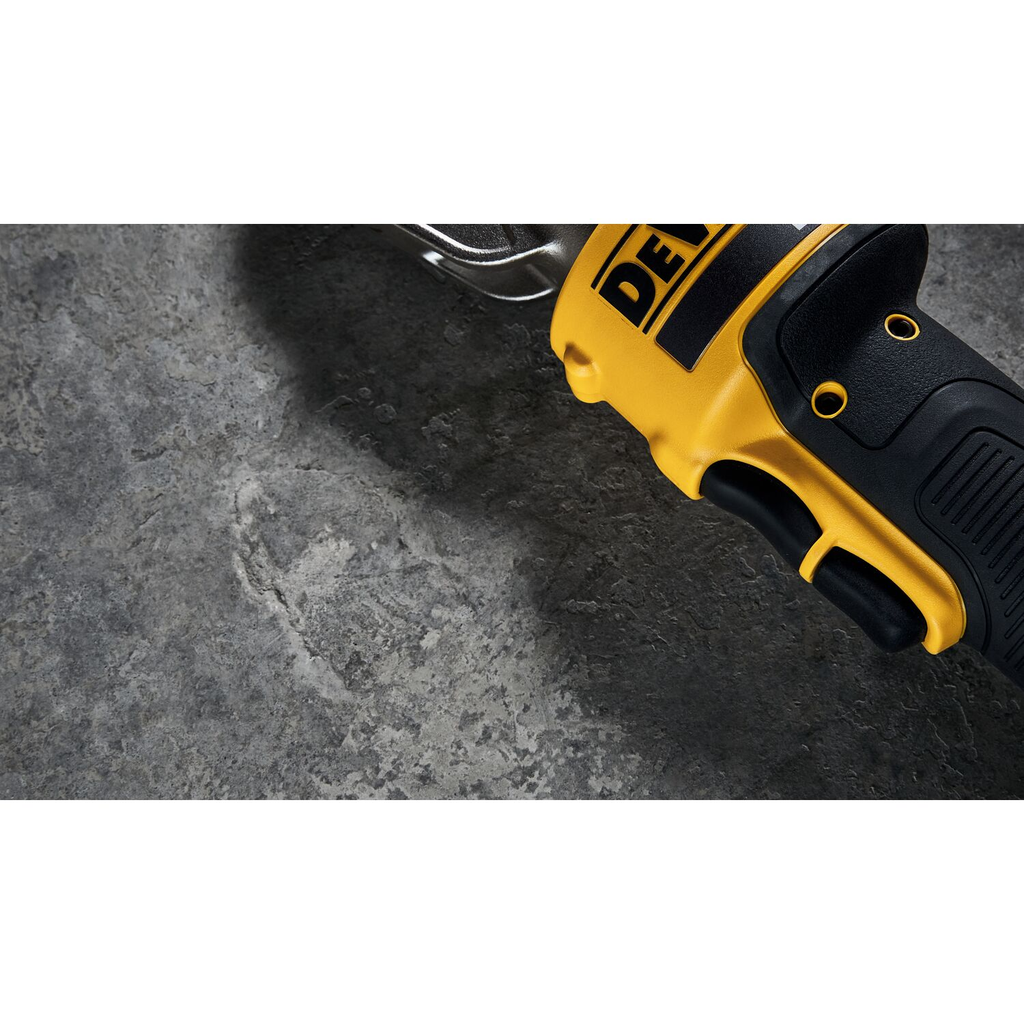

• Easily accessible manual release trigger to allow tool re-alignment mid-crimp
• Crimp Connect software provides detailed reports of work done
• Made in USA with global materials (tool only)
• 600 MCM Cu / 350 MCM Al crimping capacity for copper and aluminum cable
• 180° head rotation to access tight spaces

Disclaimer

• * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. | **Based on conversion rate of 65 kN to tnf of 65 / 8.896443230521.

Includes

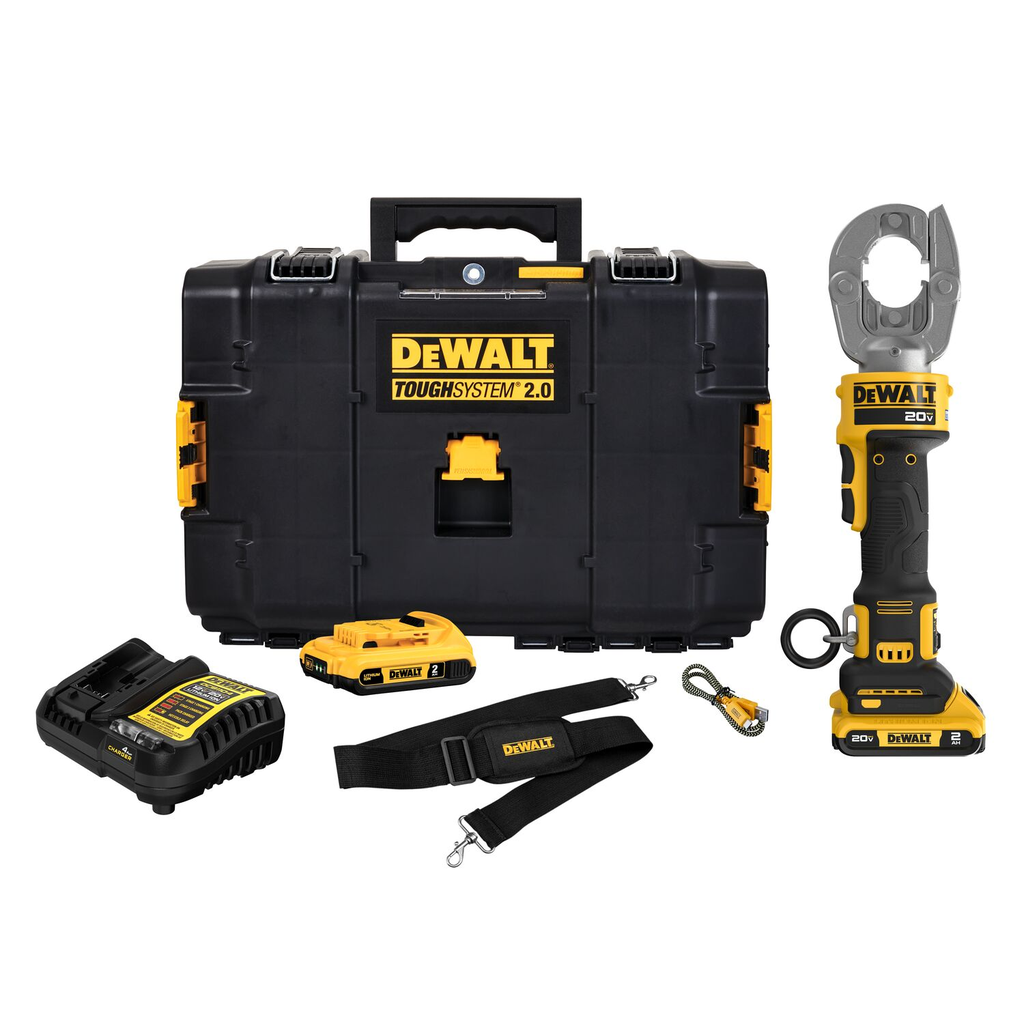

• (1) 20V MAX* Compact Died Crimping Tool | (2) DCB203 2Ah Compact Li-Ion Batteries | (1) Charger | (1) Shoulder Strap | (1) USB-C Cable | (1) Tool Connect Chip | (1) ToughSystem 2.0 Case

• Voltage: 20 V
• Crimping Capacity: 600 MCM Cu, 350 MCM Al
• Length: 23.2 in
• Width: 7.813 in
• Height: 15.375 in
• Weight: 23.93 lbs
• Battery Type: 20V MAX Lithium Ion
• Battery Amp Hours: 2 Ah
• Watt Hours: 40
• Charge Time: 60 min
• Number of Batteries Required: 1
• Battery Included: Yes
• Battery Required: Yes
• Battery Quantity: 2
• Rechargeable: Yes
• Charger Type: Wall Mountable Charging Base
• Charger Included: Yes
• Cordless Vs. Corded: Cordless
• Head Rotation: 180
• Country of Origin: USA
