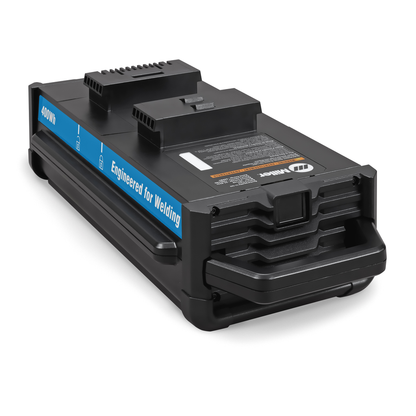

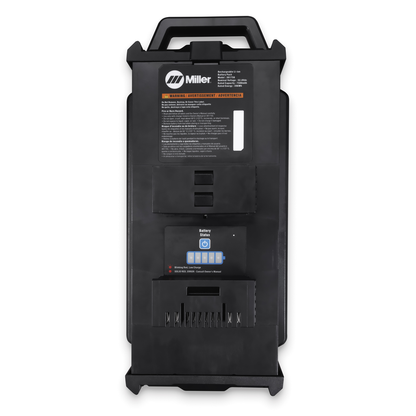

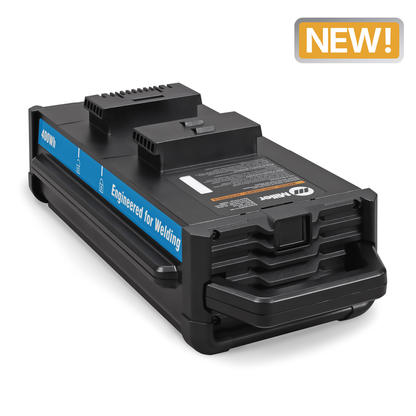

Miller Electric, 301756, Battery Pack, 400 Wh, Fast Charging, 15.54 min TIG Arc Time at 100A, 19.5 in Length

400Wh swappable battery pack engineered specifically for high power applications like welding through chemistry and cell design.

Features

• Created for Versatility: Batteries are lightweight and swappable, so users can weld anywhere
• Variable Charging: Fast charging (from 0 to 95% in <30 minutes) enables a quick charge time and throughput with the flexibility of standard charging (<60 minutes) for extended life
• Long Life: Over 1,000 charge cycles under typical use cases and with proper care
• Engineered for Durability and Safety: Battery chemistry and cell design are engineered specifically for high power applications like welding
• Innovative Software Design: Battery management software protects the battery and allows it to operate optimally throughout a range of conditions

• TIG Arc Time Per Charge: 15.54 minutes at 100A; 8.33 minutes at 160A
• Battery Voltage: 52.8 V
• Battery Charging Options: Fast: 0-95% in <30 min; Standard: 0-95% in <60 min
• Stick Electrode Consumption Per Charge: 8.021 1/8 in. 7018 at 110A; 13.45 3/32 in. 7018 at 80A; 14.49 3/32 in. 6010 at 60A; 8.14 1/8 in. 6010 at 90A; 5.79 1/8 in. 7018 at 150A; 5.57 5/32 in. 6010 at 120A
• Capacity: 400 Wh
• Battery Lifespan: Over 1,000 charge cycles
• Current Type: DC
• Weight: 15.25 EA
• Length: 19.5 EA
• Width: 8.5 EA
• Height: 6 EA
• Country of Origin: Mexico
