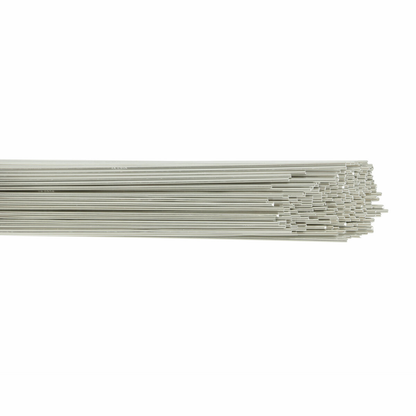

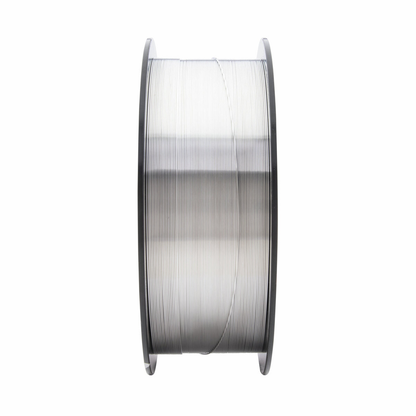

Harris Products Group, 0535670, Aluminum Welding Alloy, 39,000 psi; 5XXX Series, All Position, 1.03 lb

Harris® 5356 Aluminum Magnesium alloy is very commonly used for higher strength welding of 5XXX and 6XXX base materials. Its higher columnar strength offers improved feeding.

Features

• Tensile strength of 39,000 psi
• Welds 5XXX series alloys when 40,000 psi tensile strength is not required
• All position welding, except vertical down
• White color (post anodized)
• Very good General Purpose welding wire
• Marked with model number on each end for easy identification after use
• Designed for welding non-heat treatable base alloys, specifically 5XXX series alloys
• Common applications are welding of boats/ships, bicycles, trucks, pressure vessels and automotive parts
• Most widely used aluminum welding alloy

• Tensile Strength: 39,000 psi
• Yield Strength: 19,000 psi
• Elongation: 17% in 2 in
• Solidus Temperature: 1060 F (571 C)
• Liquidus Temperature: 1175 F (635 C)
• Density: 0.096 lbs/cu in
• Weight: 1.03 lbs
• Aluminum Content: Balance
• Magnesium Content: 4.5-5.5%
• Titanium Content: .06-.20%
• Copper Content: .10% max.
• Manganese Content: .05-.20%
• Chromium Content: .05-.20%
• Silicon Content: .25% max.
• Zinc Content: .10% max.
• Beryllium Content: .0008% max.
• Iron Content: .40% max.
• Others Content: Each .05% max., Total .15% max.
• Post Anodize Color: White
• Specification Compliance: ANSI/AWS A5.10, ASME SFA 5.10, QQ-R-566B Class R/ER 5356
