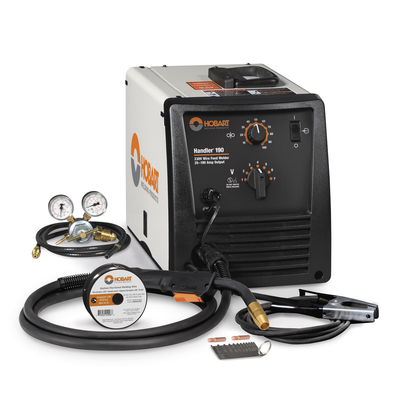

Hobart Welding Products, 500554, MIG Welder, 190 A; 240 V; Welds 24 ga. to 5/16 in. mild steel; 19.5 in long

240V MIG welder. Welds 24 ga. to 5/16 in. mild steel. Delivers industrial-grade power and control—ideal for trailers, farm equipment, and heavy-duty repairs.

Features

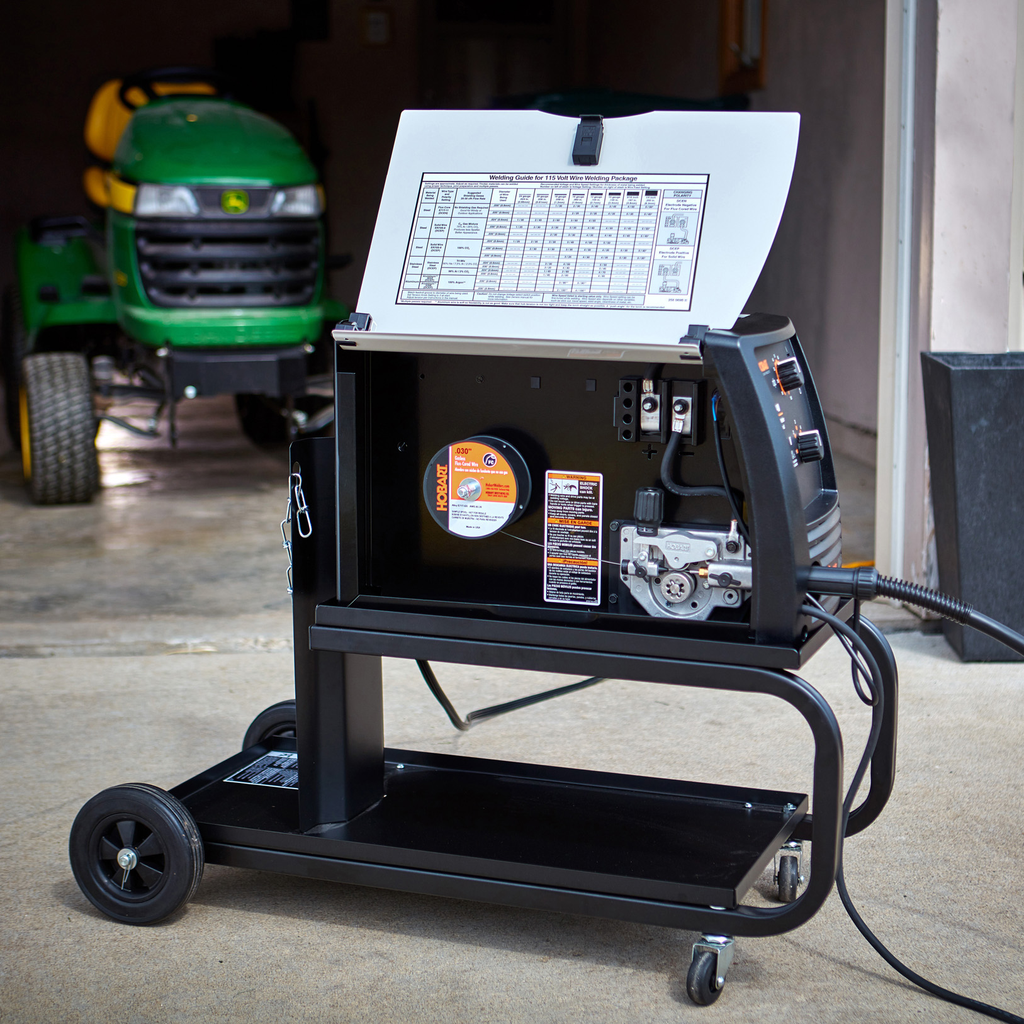

• Door Chart with initial settings: You are able to quickly reference initial settings for different wires, gases, materials, and thicknesses. Provides you a quick starting point whether you are a novice or professional.
• Integrated spool gun control circuitry is standard: Eliminates your need for an additional control box or adaptor to connect the SpoolRunner 100 spool gun.
• Built-in contactor: Eases use and excellent safety feature which makes wire electrically \"cold\" until trigger is pulled.

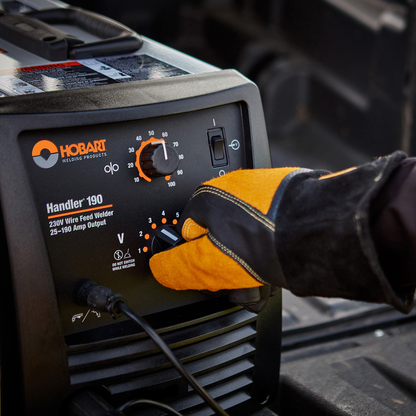

• 7 voltage settings, with infinite wire feed speed control: Allows you to fine control the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up.
• Short circuit protection: Protects unit against current overload.
• Accepts uncomplicated, easy-to-install direct plug-in SpoolRunner 100 spool gun: Spool guns enhance feedability and reduce \"bird-nesting\" associated with soft aluminum wires.
• Convenient polarity changeover: Easier and quicker for you to change polarity between solid or tubular wire.
• Self-resetting thermal overload protection: Protects power transformer from thermal overload to provide you maximum reliability.

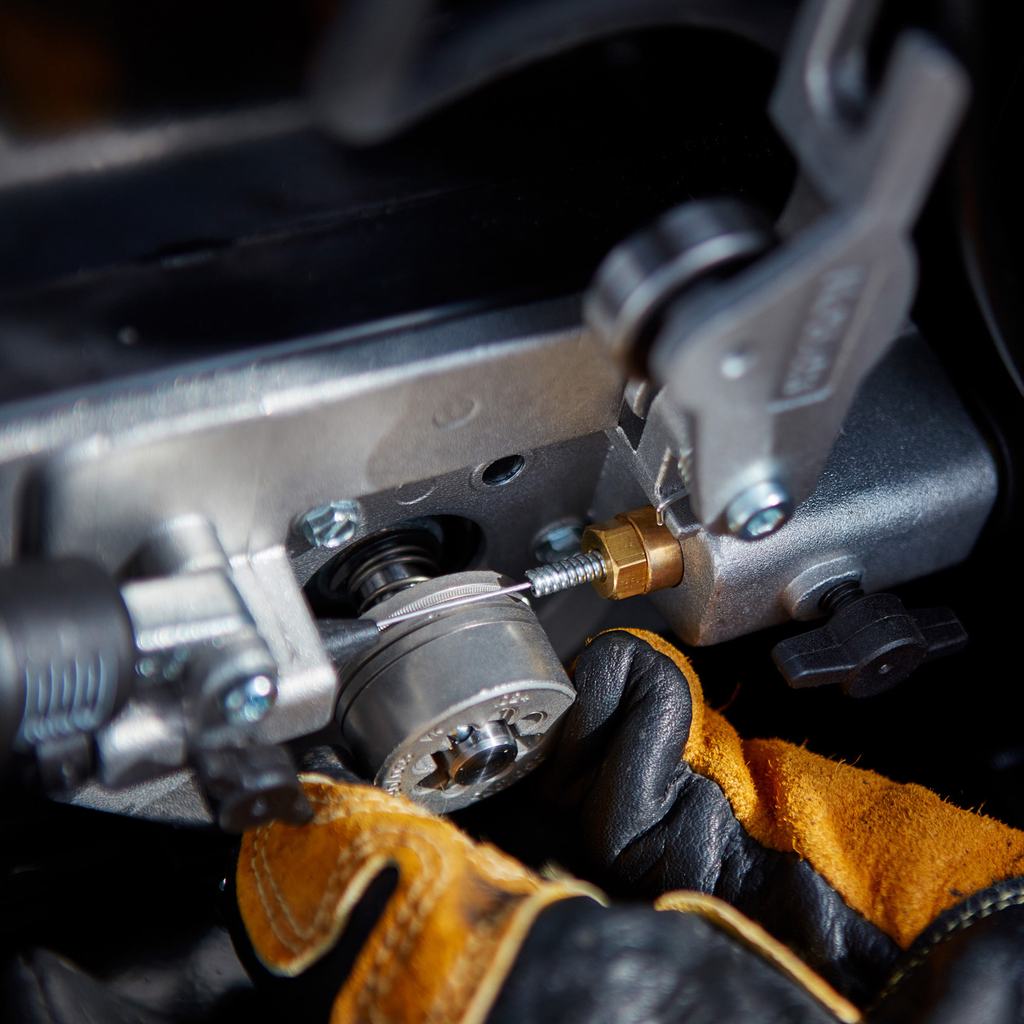

• Industrial cast aluminum wire drive system: Durable wire feed provides you professional performance
• Quick Select drive roll: Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire.

• Amperage: 25 A - 190 A
• Voltage: 220/230/240 V
• Rated Output: 130 A at 30% duty cycle
• Welding Thickness Range: Mild Steel 24 ga. (0.5 mm) - 5/16 in. (7.9 mm)
• Wire Feed Speed Range: 40 - 740 IPM
• Length: 19.5 in.
• Width: 10.625 in.
• Height: 12.375 in.
• Weight: 68 lb (31 kg)
• Wire Diameter Compatability: .024 - .035 in. (0.6 - 0.9 mm) solid wire, .030 - .045 in. (0.8 - 1.2 mm) flux-cored wire
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Max Open Circuit Voltage: 31 VDC
• Input Phase: Single Phase
• Current Type: DC
• Input Frequency: 60 Hz
• Country of Origin: United States
