Lincoln Electric, ED034791, MIG Wire, ER5183; 1.2 mm; 3/64 in; 300 lb Gem-PakTM Box

SuperGlaze® 5183 Aluminum Magnesium Manganese alloy is commonly used for higher strength welding of 5XXX and 6XXX base materials. Higher strength and superior salt water corrosion resistance with common shipbuilding base materials compared to 5356. SuperGlaze® Gem-Pak®: TANGLE-FREE FEEDING. GUARANTEED. The SuperGlaze® Gem-Pak® is 300 lbs. of premium aluminum weld wire under a layer of glass payoff gems. The patented design provides tangle-free feeding. Guaranteed. Use Aluminum Gem-Pak® Payoff Kit (K5568-1) or Accu-Pak® Box Payoff Kit (K2175-2) for payoff

Features

• Designed for applications where higher strength is required
• Gem-Pak®: simple patented design reduces rework and improves productivity
• Gem-Pak®: fork-lift ready mini-pallet attached to the box - 100% recyclable
• Excellent corrosion resistance ideal for shipbuilding and marine applications

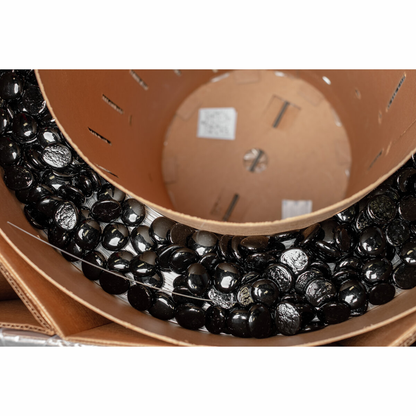

• Gem-Pak®: layer of included glass gems guarantee tangle-free feeding
• Provides very high as-welded strength for high magnesium alloys such as 5083

What's Included?

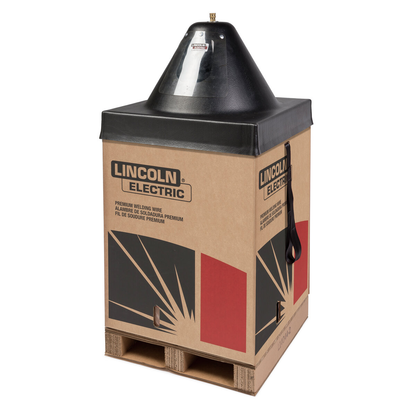

• (1) 300 lb Gem-Pak™ Box

• AWS Classification: AWS A5.10 ER5183
• EN ISO Classification: EN ISO 18273 S Al 5183 (AlMg4.5Mn0.7(A))
• Welding Process: GMAW (MIG)
• Wire Diameter: 3/64 in (1.2 mm)
• Material: Aluminum Magnesium Manganese alloy (5183)
• Yield Strength (As Welded): 125-165 MPa
• Tensile Strength (As Welded): 270-290 MPa
• Elongation (As Welded): 16-25%
• Shielding Gases: 100% Argon or Argon + 0.5-95% Helium
• Shielding Gas Flow Rate: 14-24 l/min
• Alloy Type: Aluminum 5XXX series
• Country of Origin: Ontario, Canada
• NAFTA Certified: Yes
