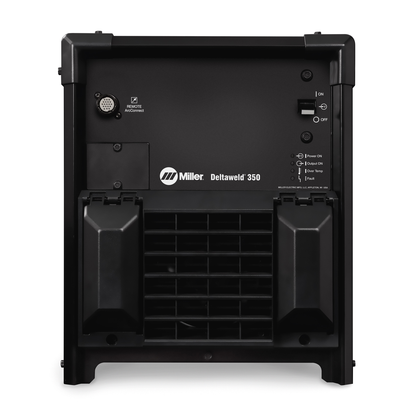

Miller Electric, 951000138, MIG Welder, Deltaweld, 350 A, 230/460 V, 3-Phase, Intellx Feeder

The manufacturing solution for welders of all skill levels, now offering pulse capabilities in an integrated package.

Features

• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• AccuLock S Consumables: AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
• Measures Productivity: Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.

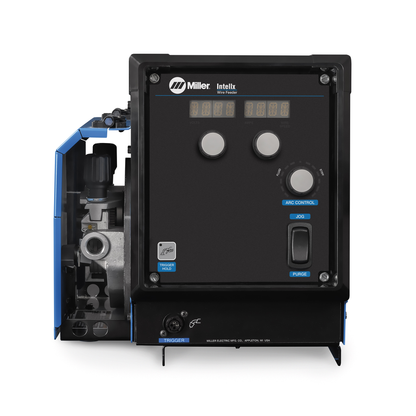

• Dedicated wire feeder options: Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments. Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
• Backwards Compatibility: A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
• Easy to use: EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Legacy meets pulse: Pulsed MIG-capable with Intellx Pro or Elite feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.

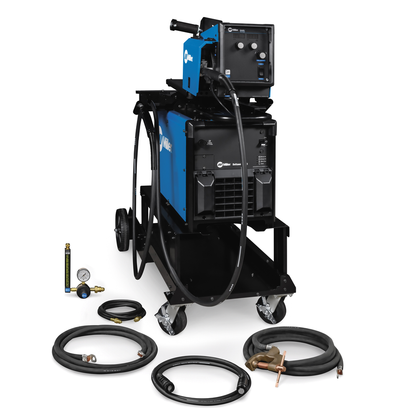

• Ready to weld: The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.

• Input Voltage: 208/230/460 V or 575 V, 3-phase, 60 Hz; 230 V, 1-phase, 60 Hz
• Auxiliary Power: 115 V, 15 A circuit-breaker protected
• Rated Output: 350 A at 60% duty cycle
• Output Range: 20 400 A, 10 38 V
• Input Welding Circuit Rating: 600 A at 113 VDC, 60% duty cycle
• Wire Diameter Capacity: .023 5/64 in. (0.6 2.0 mm); Aluminum (Elite model only): .035 1/16 in. (0.9 1.6 mm)
• Duty Cycle: 300 A at 29 VDC, 100%; 350 A at 31.5 VDC, 60%; 425 A at 35.25 VDC, 30% (3-phase); 225 A at 25.25 VDC, 100%; 250 A at 26.5 VDC, 60% (1-phase)
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Maximum Spool Size Capacity: 18 in. (457 mm), 60 lb. (27 kg)
• Dimensions (H x W x D) - Power Source: 22.36 x 15.35 x 29.15 in. (568 x 390 x 740 mm)
• Dimensions (H x W x D) - Single-wire Feeder: 16.25 x 12.38 x 27.88 in. (413 x 314 x 708 mm)
• Dimensions (H x W x D) - Dual-wire Feeder: 14 x 18 x 34.5 in. (356 x 457 x 876 mm)
• Weight - Power Source: 115 lb. (52.2 kg)
• Weight - Single-wire Feeder: 44.8 lb. (20.3 kg)
• Weight - Dual-wire Feeder: 77 lb. (34.9 kg)
• Series: Deltaweld
• Country of Origin: United States
• Compliance: Certified by Canadian Standards Association for Canadian and U.S. standards
