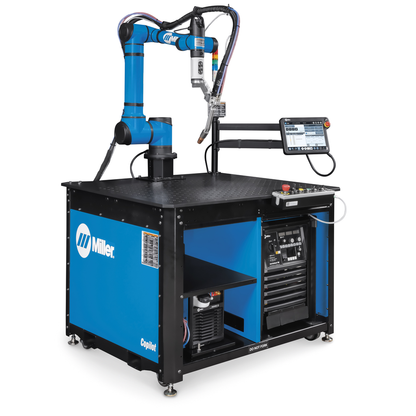

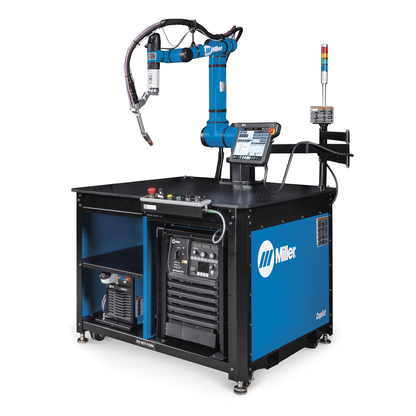

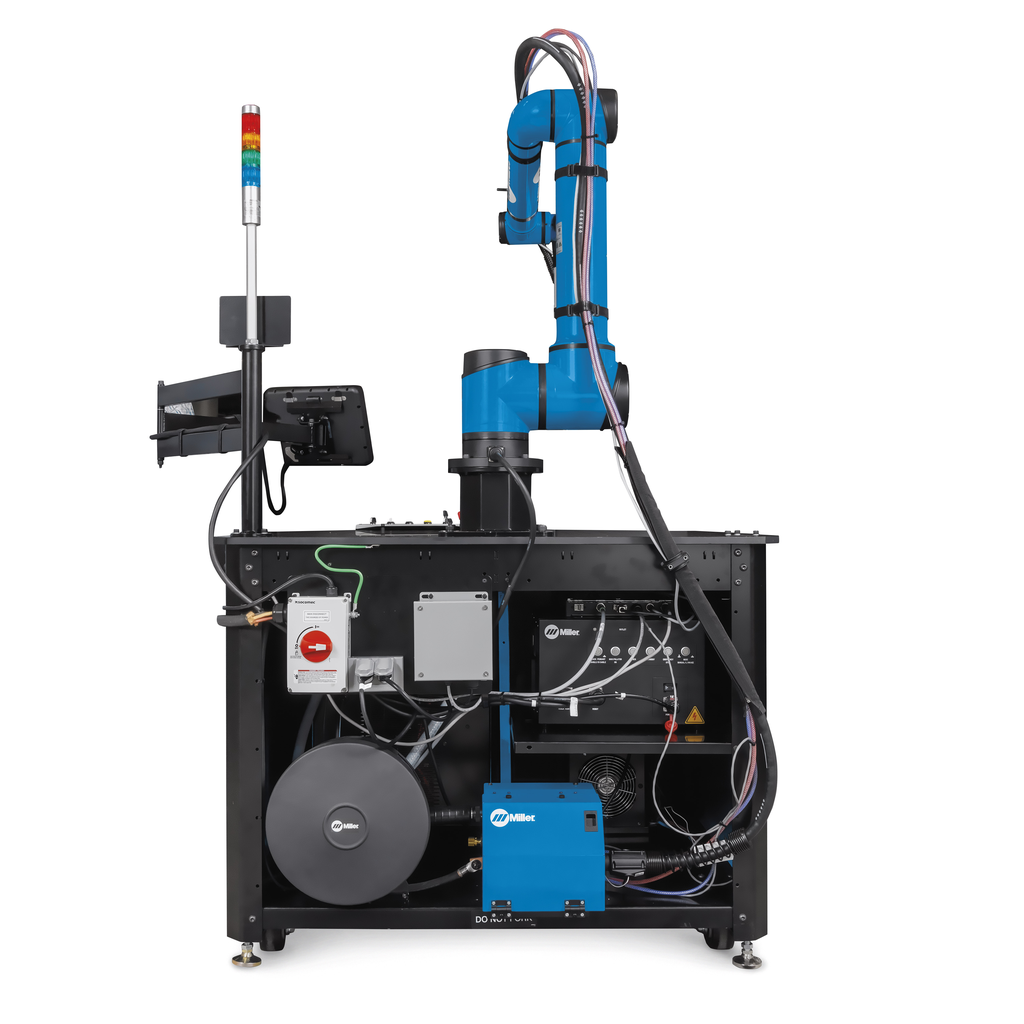

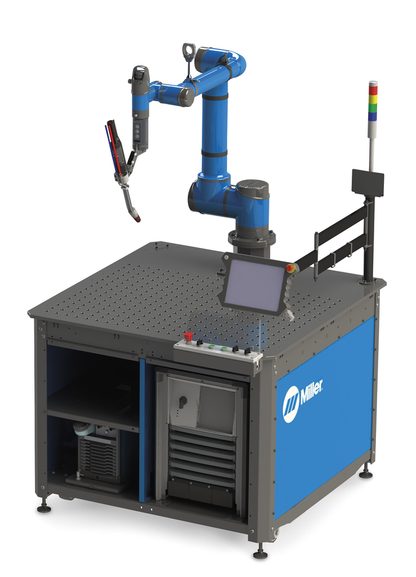

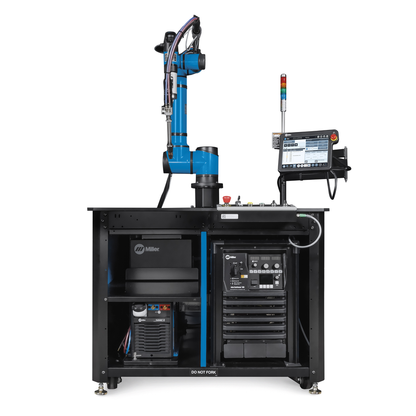

Miller Electric, 951000105, Cobot Collaborative Welding System, 500 A, Water-Cooled, Auto-ContinuumTM

Water-cooled Copilot provides the power for hotter and heavier welding challenges requiring up to 500 amps at 100% duty cycle.

Includes

• Coolmate™ 1.3 (301617) with four gallons of coolant 11
• Integrated Welding Table
• Auto-Continuum™ Wire Drive Motor Assembly
• Tregaskiss® TOUGH GUN® CA3 Robotic MIG Gun With I.C.E.® Technology
• Interconnecting Cables
• Water Lines
• Strong Hand® Tool Kit with 46 pieces including clamps and stops.
• Auto-Continuum™ 500

Features

• GMAW with advanced arc modes (Accu-Pulse®, Versa-Pulse™, RMD®) to grow with your needs.

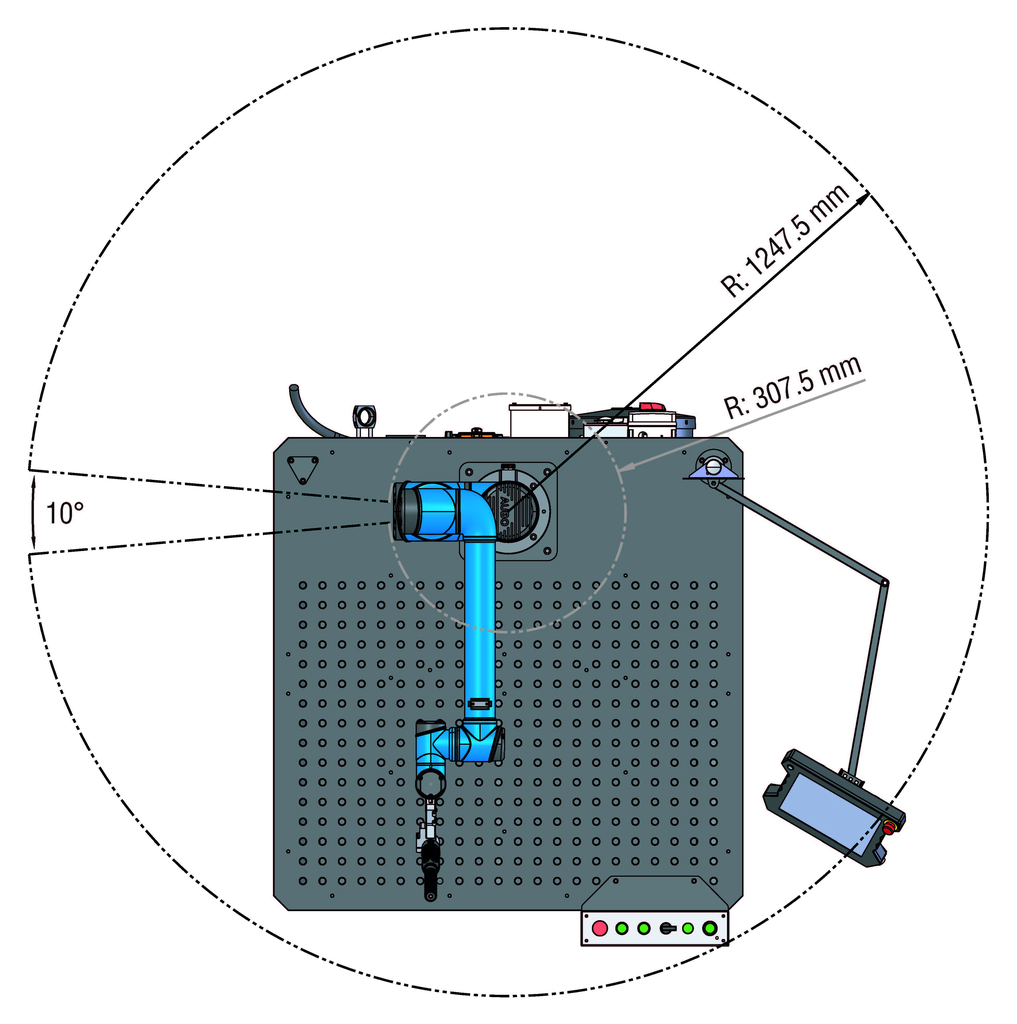

• 48 x 48 inches outfitted with 5/8 inch tooling holes that are spaced 2 x 2 inches in a 42 x 30 inch pattern on center. Compatible with Bluco® and StrongHand Tools®, among others.
• Accomplished with the collaborative function of the cobot. Operators need appropriate personal protection equipment for working in the proximity of a live arc.
• Operators can load and unload from a single station that can be shared with the robot envelope. Great for new-to-automation welding challenges and for experienced robotic welders who need the ability to address high-mix, low-volume operating scenarios in a small footprint.
• Cobot Collaborative Welding System is mounted on caster wheels for easy location placement and adjustment. External hook up to power and welding gas. Also includes a video setup guide and instructions.
• Relocate your Cobot Workstation in four easy steps; Disconnect utilities and raise the leveling feet; Push effortlessly by hand; Lower the leveling feet; Reconnect utilities.

• Amperage: 500A
• Duty Cycle: 100%
• Cooling Type: Water-Cooled
• Welding Type: GMAW
• Table Dimensions: 48 x 48 in
• Table Thickness: 0.625 in
• Tooling Hole Spacing: 2 x 2 in
• Tooling Hole Pattern Size: 42 x 30 in
• Tooling Hole Diameter: 0.625 in
• Coolant Volume: 4 gallons
• Country of Origin: United States
