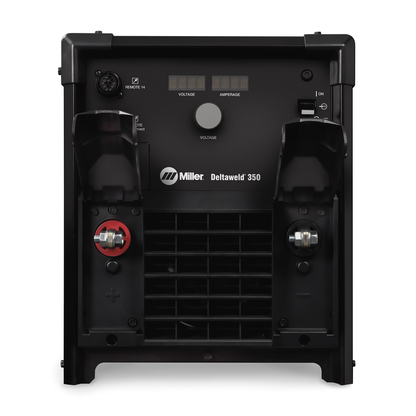

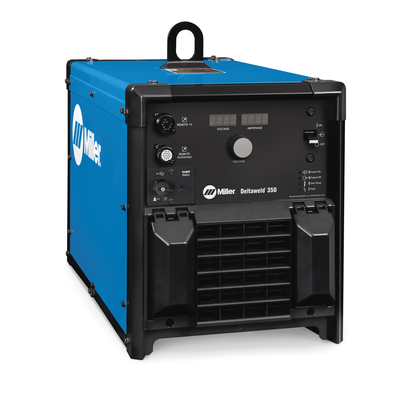

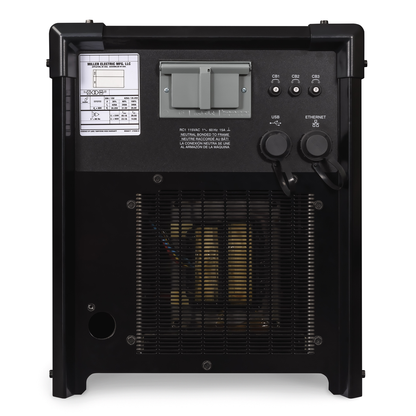

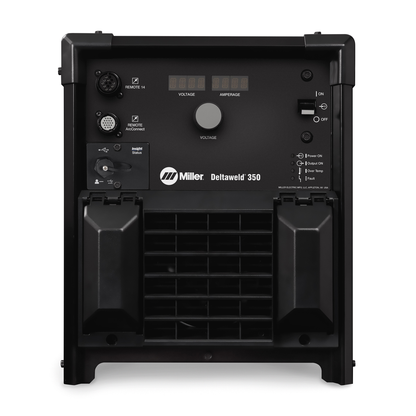

Miller Electric, 907879003, MIG Welder, Deltaweld; 350 A; 575 V; ArcConnect, Insight Core

The standard in manufacturing for welders of all skill levels, with Intellx™ wire feeder options that deliver application specific benefits.

Features

• Accu-Pulse™: Offers a more forgiving arc and compensates for variations in operator technique, providing a wider operating window.
• Backwards Compatibility: A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Ready to weld: The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
• Easy to use: EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
• Measures Productivity: Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.
• Industrial-Grade Performance: AccuLock S Contact Tips offer increased copper to handle demands of industrial-duty welding applications.
• Easy setup and simple user interface: Allows for students to work independently, helping to increase instructor efficiency.
• Dedicated wire feeder options: Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments. Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.

• Voltage: 575 V, 3-phase, 60 Hz
• Output Current Range: 20 400 A
• Output Voltage Range: 10 38 V
• Rated Output: 350 A at 60% duty cycle
• Input Welding Circuit Rating: 600 A at 113 VDC, 60% duty cycle
• Auxiliary Power: 115 V, 15 A
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Wire Diameter Capacity: .023 5/64 in. (0.6 2.0 mm), Elite model: .035 1/16 in. (0.9 1.6 mm)
• Maximum Spool Size Capacity: 18 in. (457 mm), 60 lb. (27 kg)
• Weight: 115 lb. (52.2 kg)
• Dimensions: 22.36 x 15.35 x 29.15 in. (568 x 390 x 740 mm)
• Processes: MIG (GMAW), Flux-cored (FCAW), Accu-Pulse (GMAW-P), Versa-Pulse (GMAW-P), High-deposition MIG (GMAW), RMD
• Country of Origin: United States
• Series: DeltaweldAE
• Compliance: CSA certified to Canadian and US standards
