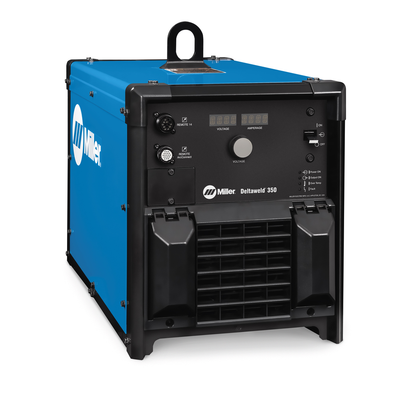

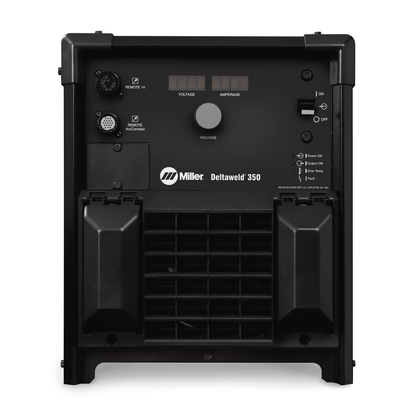

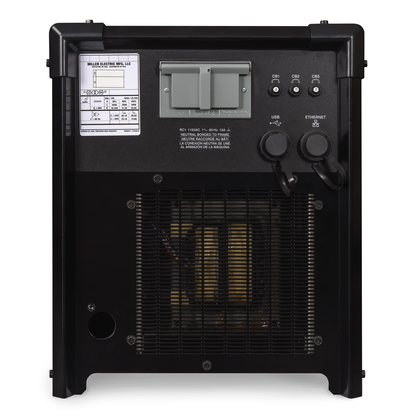

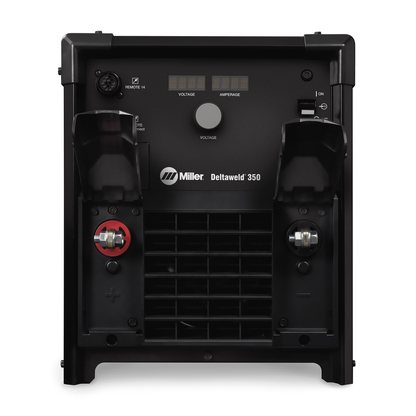

Miller Electric, 907879001, MIG Welder, Deltaweld , 575 V, ArcConnectTM

The manufacturing solution for welders of all skill levels, now offering even more capabilities in an integrated package.

Features

• Dedicated wire feeder options: Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments. Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
• Backwards Compatibility: A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
• Legacy meets pulse: Pulsed MIG-capable with Intellx Pro or Elite feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.
• Ready to weld: The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
• Easy to use: EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Measures Productivity: Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits

• Output Range: 20 400 A, 10 38 V
• Rated Output: 350 A at 60% duty cycle
• Input Power: 575 V, 3-phase, 60 Hz
• Input Welding Circuit Rating: 600 A at 113 VDC, 60% duty cycle
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Wire Diameter Capacity: .023 5/64 in (0.6 2.0 mm); Elite model only Aluminum: .035 1/16 in (0.9 1.6 mm)
• Maximum Spool Size Capacity: 18 in (457 mm), 60 lb (27 kg)
• Dimensions: 22.36 x 15.35 x 29.15 in (568 x 390 x 740 mm)
• Weight: 115 lb (52.2 kg)
• Auxiliary Power: 115 V, 15 A circuit-breaker protected
• Compliance: Certified by Canadian Standards Association to Canadian and U.S. Standards
• Series: Deltaweld
• Country of Origin: United States
