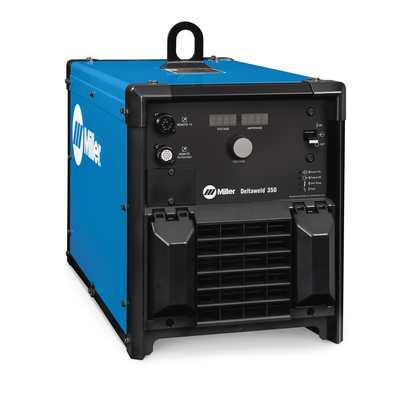

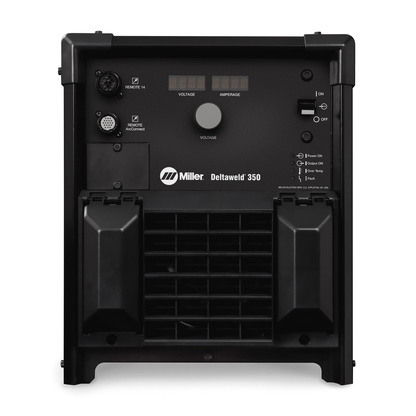

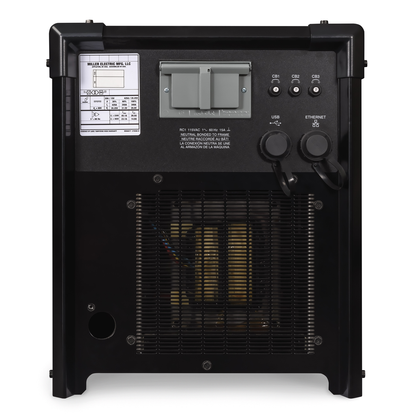

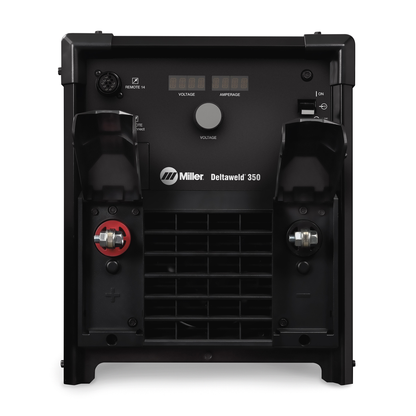

Miller Electric, 907879, MIG Welder, Deltaweld; 350 A, 575 V, ArcConnect

The manufacturing solution for welders of all skill levels, now offering even more capabilities in an integrated package.

Features

• Backwards Compatibility: A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• Legacy meets pulse: Pulsed MIG-capable with Intellx Pro or Elite feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.
• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Easy to use: EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits
• Dedicated wire feeder options: Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments. Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
• Measures Productivity: Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.
• Ready to weld: The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
• Fan-on-Demand™: Allows the fan to run up to 36% less to reduce the amount of contaminants pulled though the machine to help extend the life of the product.

• Input Power: 575 V, 3-phase, 60 Hz
• Rated Output: 350 A at 60% duty cycle
• Output Range: 20 400 A, 10 38 V
• Duty Cycle: 60%
• Weldable Metals: Aluminum, Mild Steel, Steel
• Series: Deltaweld
• Country of Origin: United States
