Miller Electric, 907878, Welder, Deltaweld, 575V, Max Spool 18 in; 60 lb, Aluminum; Stainless

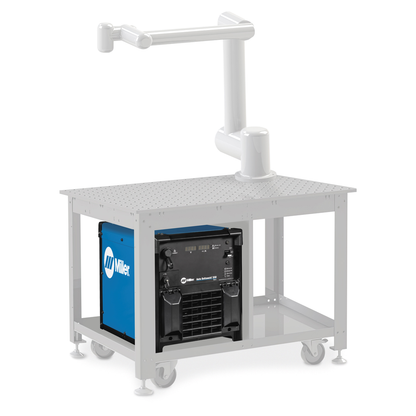

Designed for cobot integrators, Auto Deltaweld is your direct path to incorporate Miller welding technology into to your offerings.

Features

• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Easy to integrate: Provides both Modbus® TCP and EtherNet/IP for direct communications to your Cobot.
• Ethernet Communication Receptacle: Allows webpage display and access for weld set up, troubleshooting, and power supply configuration.
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• Accu-Pulse™: Offers a more forgiving arc and compensates for variations in operator technique, providing a wider operating window.
• Advanced Welding Processes: With just the push of a few buttons, unlock Miller® advanced welding processes that can boost productivity and quality.
• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.

• Voltage: 208/230/460 V three-phase, 230 V single-phase, 60 Hz
• Output Amperage: 350 A at 60% duty cycle
• Output Range: 20 400 A
• Output Voltage Range: 10 38 V
• Auxiliary Power: 115 V, 15 A
• Duty Cycle Output Ratings: 300 A at 29 V 100%, 350 A at 31.5 V 60%, 425 A at 35.25 V 30% (three-phase); 225 A at 25.25 V 100%, 250 A at 26.5 V 60% (single-phase)
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Wire Diameter Capacity: .023 5/64 in. (0.6 2.0 mm)
• Wire Drive Motor Power: 50 VDC
• Weight: 115 lb (52.2 kg)
• Dimensions: 18.54 in. H x 15.35 in. W x 29.15 in. D
• Spool Size: Maximum spool capacity 18 in. (457 mm), 60 lb (27 kg) or drums
• Wire Drive Motor Weight: 21.2 lb (9.6 kg)
• Wire Drive Motor Dimensions: 9.7 in. H x 11.8 in. W x 10.8 in. D
• Material: Aluminum; Stainless
• Compliance: CSA Certified to Canadian and U.S. standards
• Country of Origin: United States
• Series: Deltaweld
