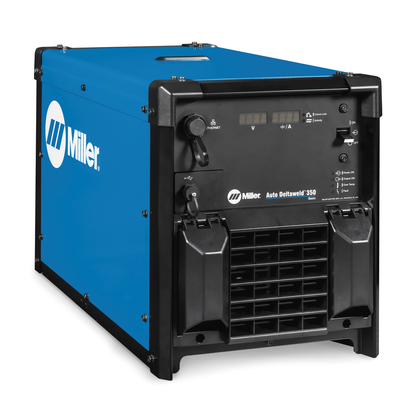

Miller Electric, 907862, Welder, 3-Phase, 350 A at 60% duty cycle, Deltaweld, Max Spool 18 in, 60 lb

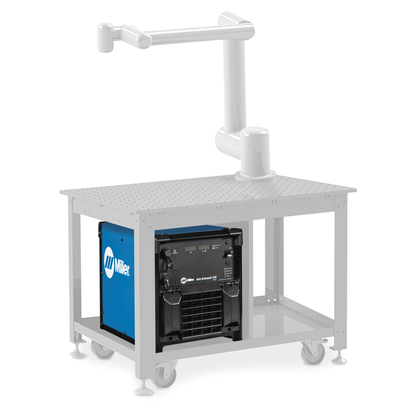

Designed for cobot integrators, Auto Deltaweld is your direct path to incorporate Miller welding technology into to your offerings.

Features

• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Easy to integrate: Provides both Modbus® TCP and EtherNet/IP for direct communications to your Cobot.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Advanced Welding Processes: With just the push of a few buttons, unlock Miller® advanced welding processes that can boost productivity and quality.

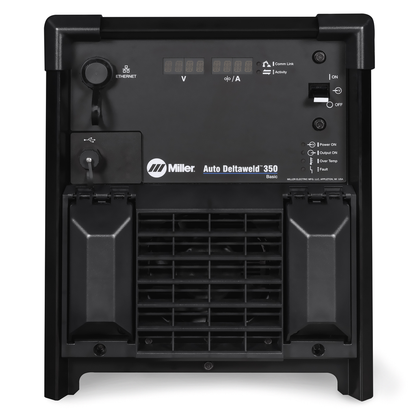

• Ethernet Communication Receptacle: Allows webpage display and access for weld set up, troubleshooting, and power supply configuration.
• Accu-Pulse™: Offers a more forgiving arc and compensates for variations in operator technique, providing a wider operating window.
• Easy to Use: Programming and operation is driven to the cobot pendant to allow for a single-point user interface.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.

• Rated Output: 350 A at 60% duty cycle
• Weld Output: 20 400 A, 10 38 V
• Input Power: 208/230/460 V three-phase, 230 V single-phase, 60 Hz

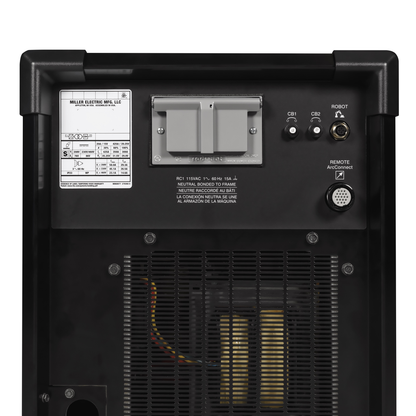

• Auxiliary Power: 115 V, 15A circuit breaker-protected
• Input Phase: 3-Phase
• Input Welding Circuit Rating: 600 A at 60% duty cycle, 113 VDC
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Wire Diameter Capacity: 0.023 5/64 in (0.6 2.0 mm)
• Maximum Spool Capacity: 18 in (457 mm), 60 lb (27 kg) or drums
• Length: 29.15 in
• Height: 18.54 in
• Width: 15.35 in
• Weight: 115 lb (52.2 kg)
• Weldable Metals: Aluminum, Mild Steel, Stainless Steel, Steel
• Series: Deltaweld
• Country of Origin: United States
• Compliance: Certified by Canadian Standards Association (CSA) to Canadian and U.S. standards
