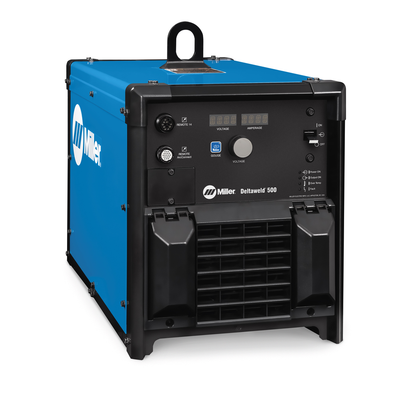

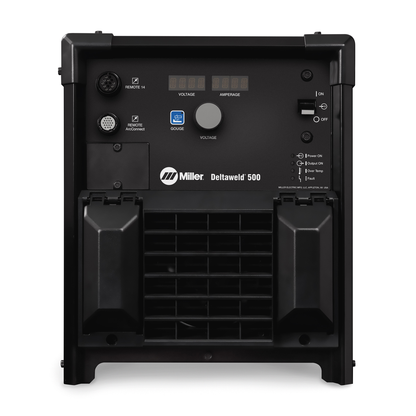

Miller Electric, 907786001, MIG Welder, Deltaweld; 500 A, 575 V, ArcConnect, 15.35 in Width

The manufacturing solution for welders of all skill levels, now offering pulse capabilities in an integrated package.

Features

• Backwards Compatibility: A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
• Measures Productivity: Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Ready to weld: The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
• Easy to use: EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
• Gouge Mode: Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8\" carbons.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• Dedicated wire feeder options: Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments. Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
• Legacy meets pulse: Pulsed MIG-capable with Intellx Pro or Elite feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.

• Rated Output: 500 A at 100% duty cycle
• Output Range: 30 650 A, 10 44 V
• Duty Cycle Current: 500 A at 39 V, 100% duty cycle
• Duty Cycle Voltages: 42.75 V at 575 A, 44 V at 650 A (25% duty)
• Input Power: 575 V, 3-phase, 60 Hz
• Input Amperage at Rated Output: 24.8 A (208 V), 24.2 A (230 V), 21.7 A (460 V), 24.2 A (575 V)
• Input Welding Circuit Rating: 600 A at 113 VDC, 60% duty cycle
• Wire Feed Voltage: 50 VDC
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Wire Diameter Capacity: 0.023 5/64 in (0.6 2.0 mm)
• Gouge Mode Capacity: Up to 3/8 in carbons
• Cooling System: Fan-On-Demand
• Dimensions: H 22.34 in x W 15.35 in x L 31.65 in
• Weight: 145 lb (65.8 kg)
• Maximum Spool Size Capacity: 18 in (457 mm), 60 lb (27 kg)
• Series: Deltaweld
• Country of Origin: United States
• Compliance: Certified by CSA to Canadian and U.S. Standards
• Communication: ArcConnect
