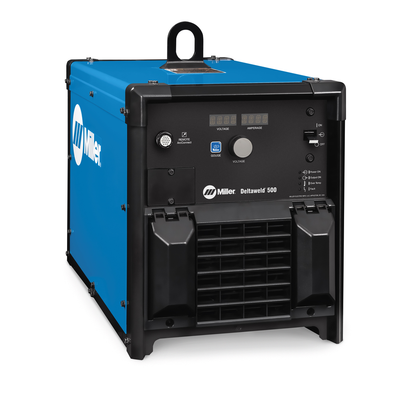

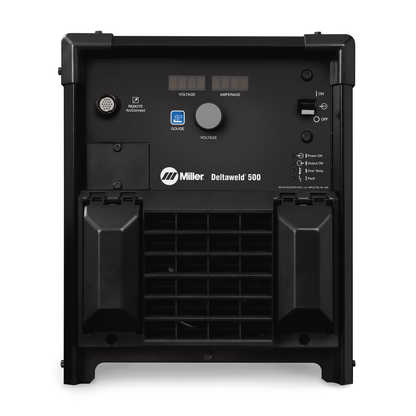

Miller Electric, 907786, Welder, Deltaweld Series, 500 A, 575 V, ArcConnectTM

The manufacturing solution for welders of all skill levels, now offering pulse capabilities in an integrated package.

Features

• Dedicated wire feeder options: Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments. Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
• Backwards Compatibility: A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
• Measures Productivity: Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.
• Easy to use: EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
• Ready to weld: The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Gouge Mode: Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8\" carbons.
• Legacy meets pulse: Pulsed MIG-capable with Intellx Pro or Elite feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.

• Rated Output: 500 A at 100% duty cycle
• Output Range: 30 650 A, 10 44 V
• Duty Cycle: 100% at 500 A, 60% at 575 A, 25% at 650 A
• Input Power: 208/230/460 V or 575 V, 3-phase, 60 Hz
• Auxiliary Power: 115 V, 15 A
• Gouge Mode Capacity: 3/8 in carbons
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Wire Diameter Capacity: .023 5/64 in (0.6 2.0 mm); Elite model only aluminum .035 1/16 in (0.9 1.6 mm)
• Maximum Spool Size Capacity: 18 in (457 mm), 60 lb (27 kg)
• Height: 22.34 in
• Width: 15.35 in
• Length: 32.25 in
• Weight: 145 lb (65.8 kg)
• Material: Series: Deltaweld
• Country of Origin: United States
• Cooling System: Fan-On-DemandTM
• Communication: ArcConnectTM
• Wire Feeder Options: Intellx Basic, Intellx Pro, Intellx Elite
• Compliance: Certified by Canadian Standards Association to Canadian and U.S. Standards
