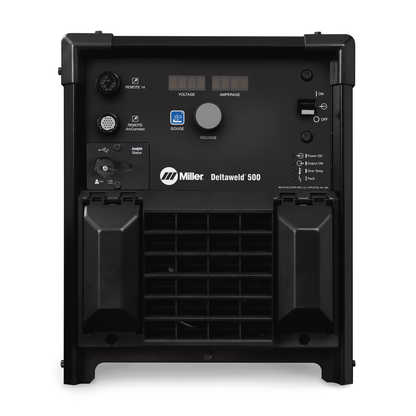

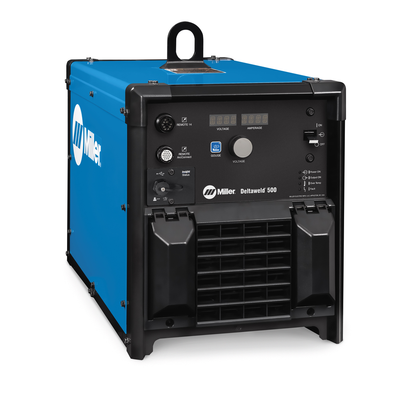

Miller Electric, 907785003, MIG Welder, 500 A, 208-230/460V, Deltaweld Series, ArcConnectTM

The manufacturing solution for welders of all skill levels, now offering pulse capabilities in an integrated package.

Features

• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Backwards Compatibility: A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
• Legacy meets pulse: Pulsed MIG-capable with Intellx Pro or Elite feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.
• Easy to use: EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Dedicated wire feeder options: Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments. Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
• Gouge Mode: Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8\" carbons.
• Ready to weld: The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
• Measures Productivity: Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.

• Output Range: 30-650 A
• Rated Output: 500 A at 100% duty cycle
• Input Voltage: 208-230/460 V, 3-phase
• Input Power Frequency: 60 Hz
• Input Power Phase: 3-Phase
• Duty Cycle: 100% at 500 A, 39-40 VDC
• Weight: 145 lb (65.8 kg)
• Height: 22.34 in
• Length: 31.65 in
• Width: 15.35 in
• Processes: MIG (GMAW), Flux-cored (FCAW), Accu-Pulse (GMAW-P), Versa-Pulse (GMAW-P), High-deposition MIG (GMAW), RMD
• Gouge Mode: 3/8 in carbons
• Series: Deltaweld
• Country of Origin: United States
