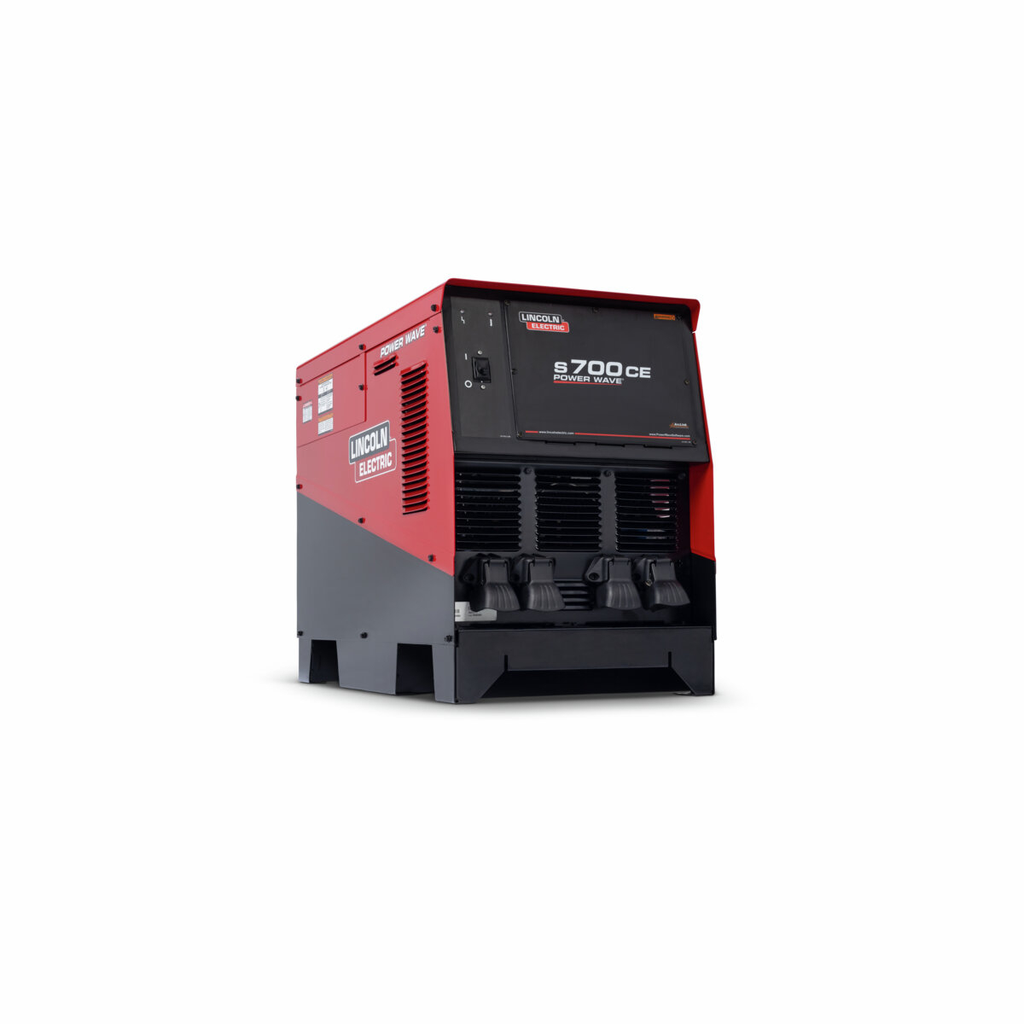

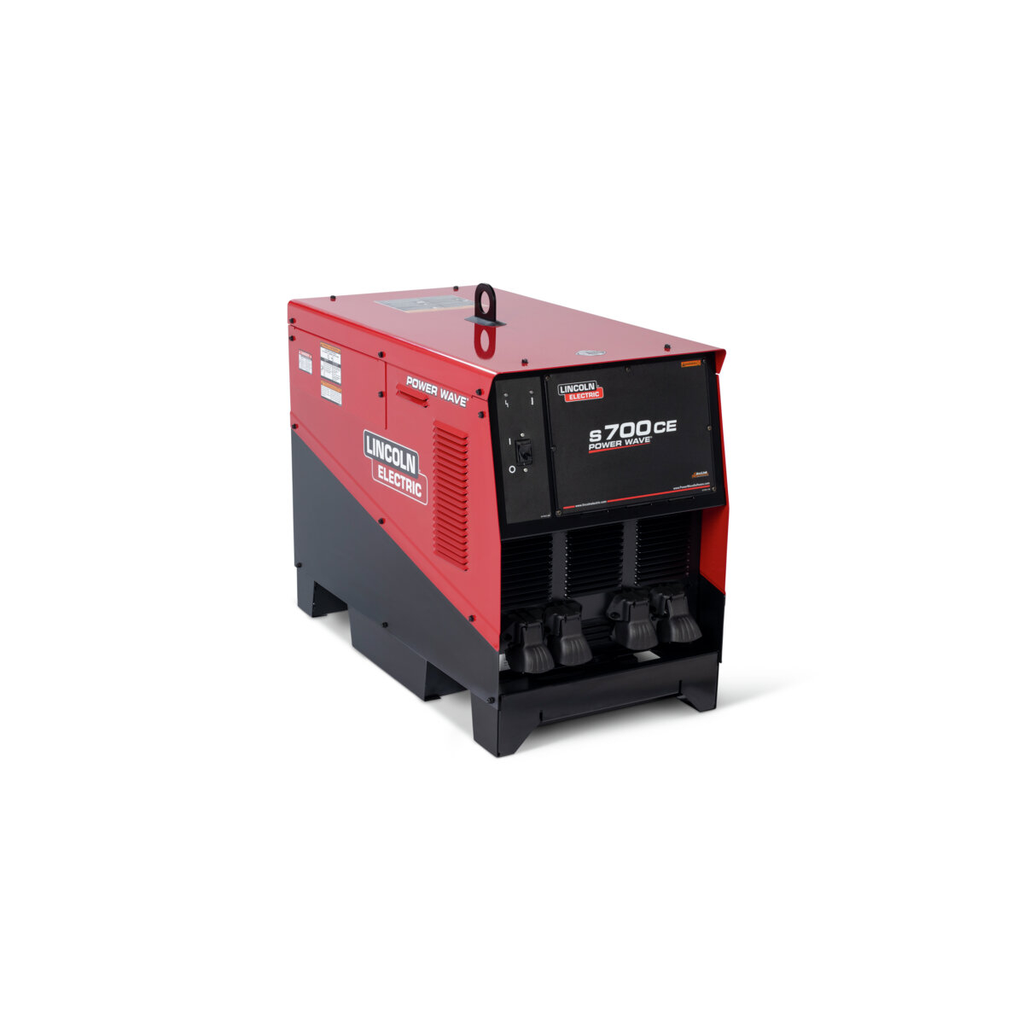

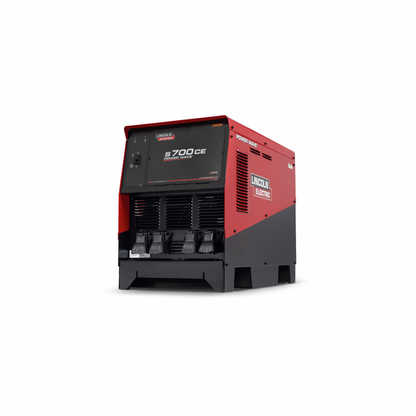

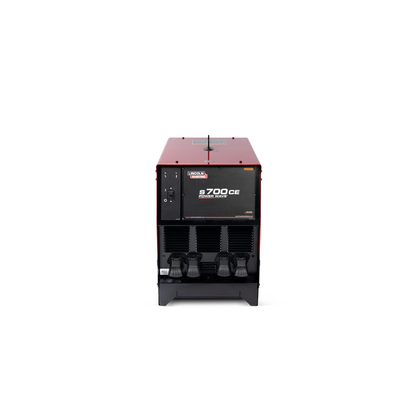

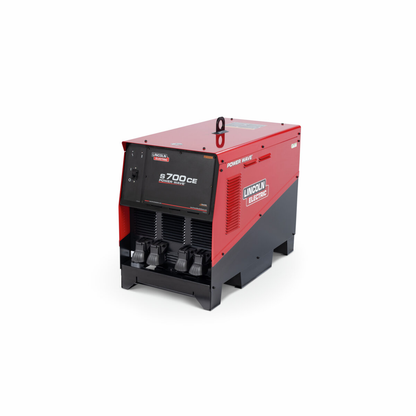

Lincoln Electric, K5372-1, Advanced Process Welder, 900A Max Output, 700A Rated Output, 3 Phase, Inverter/Chopper

Advanced Multi-Process Capabilities up 900A The Power Wave® S700 features the advance process control and capabilities for high-output, high-duty cycle applications common in the heavy fabrication industries. With a rating of 700 Amps with 100% duty cycle and a maximum output of 900 Amps with 60% duty cycle, the Power wave® S700 is the ideal high-output multi-process advanced power source for demanding applications.

Features

• 900A Output - High-output capability for all day performance in heavy fabrication industries
• Industry Leading 5 Year Warranty
• 95% Power Factor Correction - Energy efficient design results in substantial energy cost savings compared to traditional transformer-based equipment.
• Proven Severe Duty Reliability - IP23 rated to withstand harsh environments.
• Advanced Connectivity - All Power Wave ® systems come standard with access to Lincoln Electric Power Wave ® Manager and Lincoln Electric Checkpoint ® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
• For a full list of available welding processes and waveforms as well as software update details for Power Wave ® advanced process welding systems, please visit: www.PowerWaveSoftware.com
• Versatile - All-process capability and flexible configuration allows for use in semi-automatic, hard automation or robotic applications.

• Output Current: 700A at 100% duty cycle, 900A at 60% duty cycle
• Output Range: 20 - 900A
• Input Voltage: 380-415/460-480/500 VAC (Multiple)
• Input Phase: 3
• Input Frequency: 50/60 Hz
• Ingress Protection Rating: IP23
• Product Dimensions (H x W x D): 30.1 x 19.1 x 36.7 in (765 x 485 x 932 mm)
• Weight: 400 lb (181 kg)
• Connector Type: 5 Amphenol Pins
• Arclink Connector: Yes
• Output Polarity: DC
• Tap or Continuous Control: Continuous
• Welding Technology: Inverter/Chopper
• Communication Technology: ArcLink
• Data Technologies: Ethernet
• Work Lead Connector Type: Lug
• Temperature Rating at Rated Output: 40 C
• Country of Origin: United States
• Warranty Length: 5 Years
